Innovation for Fluid bed drier
Writer： admin Time：2021-06-07 17:56 Browse：℃
Fluid bed granulating and drying machine is also called one-step granulating machine. It can mix, granulate and dry material in one step in an enclosed container. The machine was innovated and developed on the basis of introducing similar machines in 1980s. It is now featured by simple and convenient operation and excellent performance. Thus it can fulfill requirements in most pharmaceutical and food industry. The produced granules feature strong disintegration, good fluidity and good dissolution. They can be directly processed to tablets, capsules and other preparations. As a result, the machine is widely used to dry and granulate Western medicine and traditional Chinese medicine.
As both GMP standards and technical requirements raise gradually, traditional fluid-bed granulating and drying machine should also be upgraded. Experts point out that the machine should be an integration of mechanical design and granulating techniques. The granulating equipment should all be designed according to material properties and processing techniques. Take powdery material as example. If processed by the traditional fluid-bed machine, the material will generate dust which contaminates the workshop and equipment and even causes explosion. Besides, traditional machines also have dead corners, leading to inconvenient cleaning.

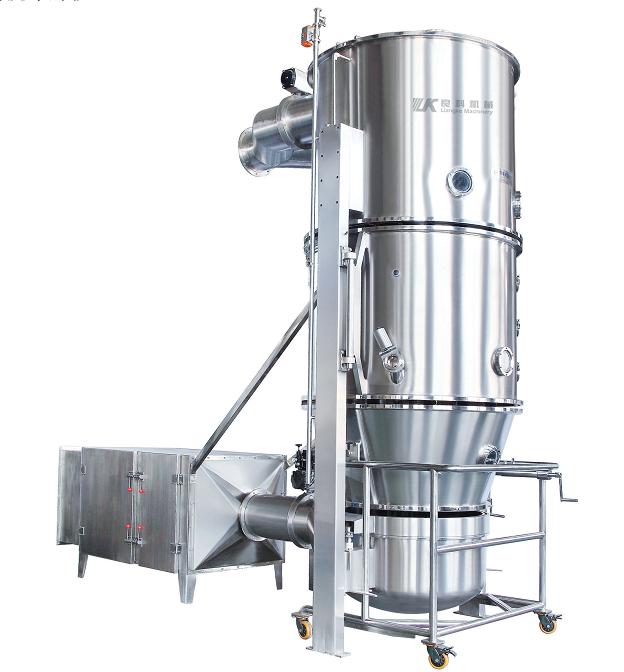

After long-time R&D, new fluid-bed granulating and drying machine emerges. It is known that nowadays FL series are the widely-used granulating and drying machine internationally. The machines can be used to mix, granulate and dry powdery material in pharmaceutical industry, food industry, chemical industry and light industry. In the future, there is also bright prospect for the machine. As is learned, all machine parts contacting material are made of stainless steel and the machine is sealed by silicone rubber inflatable seal ring. The granule size can be controlled by two-flow spraying gun. Mixing, granulation and drying are finished in the same enclosed container quickly. No flying dust, no leaking and no contamination will be caused. Besides, FL series machines are featured by elegant structure, small resistance, no dead corners, convenient material feeding and discharging and quick cleaning. The machine also adopts anti-static filtering cloth for safe production. Pressure releasing vent is also set. When explosion occurred, the operators can be protected. All of these settings meet standards of GMP.
Another strength of the machine is that it can process material to be fluidizied. During production, the clean and heated air preheat and mix the material. Then adhesive is sprayed into the material to agglomerate it. Since the air dries it ceaselessly, moisture evaporates and adhesive solidifies. At last, the material is produced to ideal, uniform, porous and round granules. Powder granulation can obviously reduce flying dust and better product fluidity. Besides, the end product can dissolve more uniformly for the patients’ convenient take and its own better efficacy. Nowadays, granules are more and more popular since it’s convenient, effective and simple to take them. But there are still many for us to learn to improve our fluid-bed granulating and drying machine and to face the international market with new posture.
