Tablet Press Machine

ZPT-420-45D high speed rotary tablet press

Product ID: Tablet Press Machine
Brand Name: Liangke
Certification: CE,GMP,ISO
Price: negotiable
Payment Terms: TT,L/C,West Union
Delivery Time: 30 working days upon receipt of payment
INQUIRY

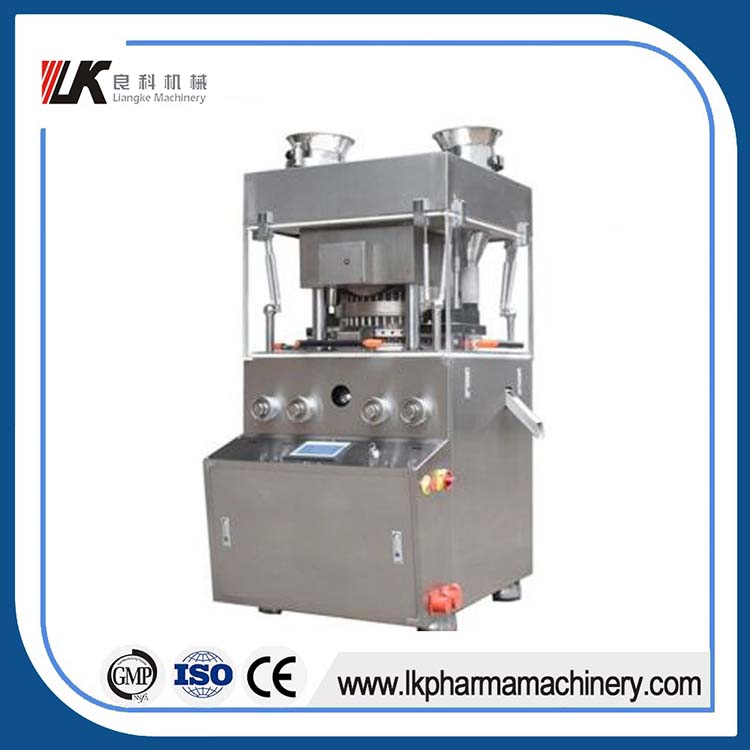

ZPT-420-45D high speed rotary tablet press

Overview

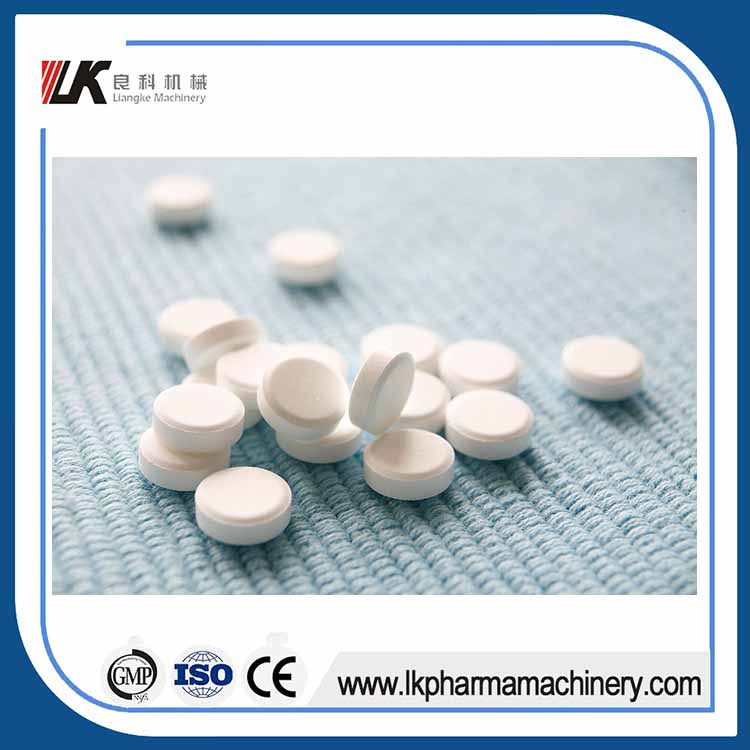

ZPT-420-45D high speed rotary tablet press is a machine which rotates automatically and presses continuously. It can press particle materials into round, lettering, irregular-shape or double-color tablets. The machine is mainly used in pharmaceutical production, as well as some factories of chemical, food and electronic industries.

Brief introduction

1)The machine is completely enclosed by a cover and the interior table is made of stainless steel, which can keep the surface smooth and avoid cross contamination to meet GMP requirements.

2)The equipped plexiglass window can help users to observe tablet pressing. The side boards can all be opened to simplify cleaning and maintenance.

3)Layout of all controllers and operation parts are reasonable.

4)Speed of frequency control of speed is applied for electrical adjustment of speed, convenient, stable, safe and precise operation and rotation.

5)The overload protection device can stop machine when the machine is overloaded.

6)The machine is an integration of mechanism and electricity and related information can be shown on screen.

7)The machine is the leading one to apply semi-automatic lubricating device and to be equipped with plexiglass dust preventing device.

8)The driving system is enclosed in the oil box under the main machine. It is a safe and separated part and will not be contaminated crossly. Besides, the driving parts immerse in oil for quick heat radiation and wear-resistance.

9)An equipped dust collecting device can collect dust in tablet pressing chamber.

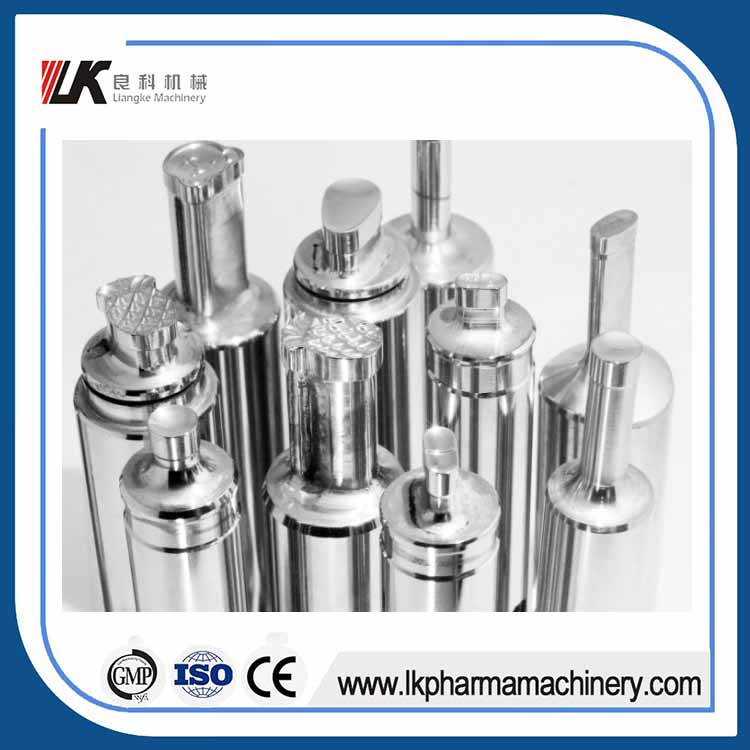

10)Consumable parts, including upper track, material feeder, hopper, driving worm and powder measuring device are interchangeable with those of ZP33 for standardization, interchangeability and serialization.

Main Technical Data

Model	ZP45D
Quantity of punching die	45
Tablet pressing pressure (KN)	80
Pressing diameter (mm)	12
Filling depth (mm)	18
Tablet thickness (mm)	8
Rotating speed of turntable (rpm)	25
Output (pcs/h)	123000
Motor power (KW)	4
Overall dimensions (mm)	12409801650
Machine weight (KG)	1950
