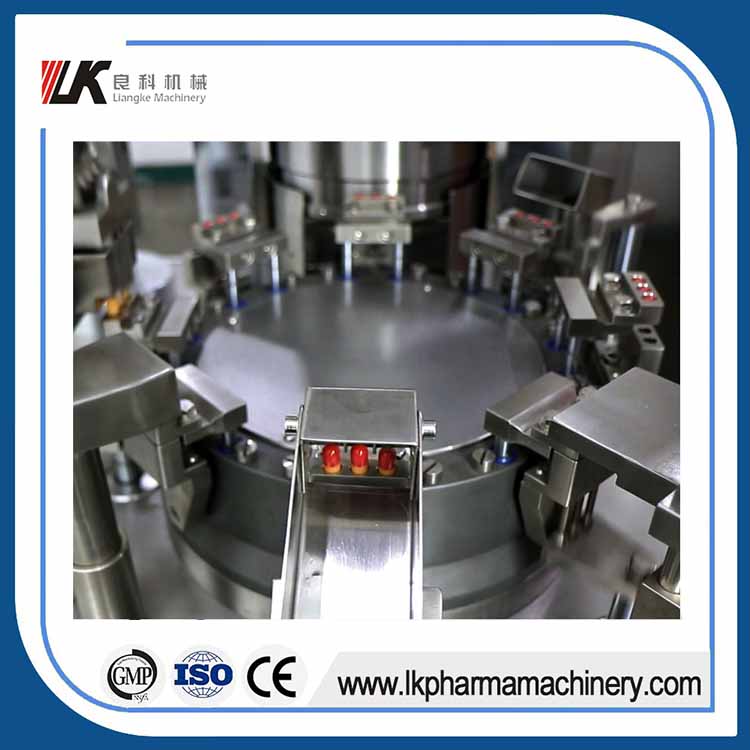

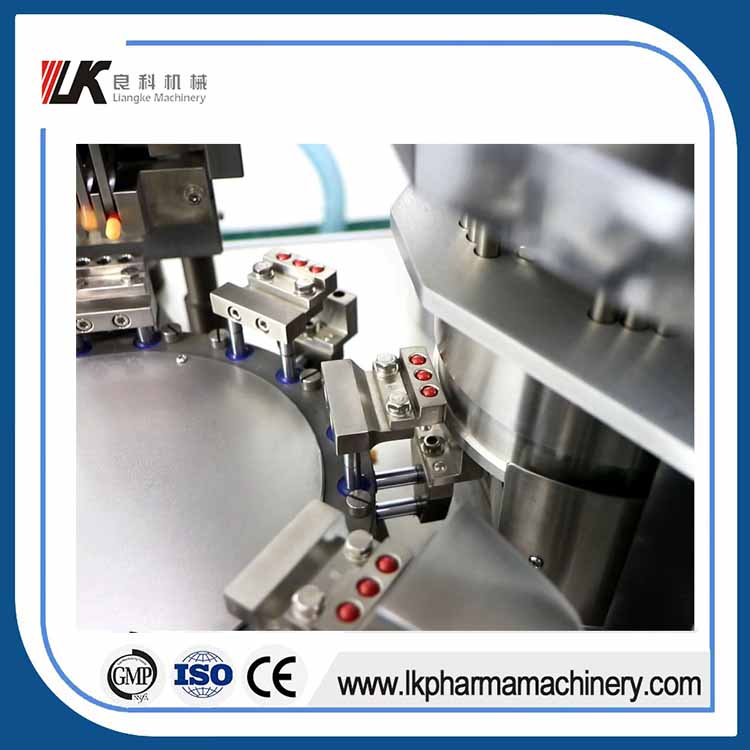

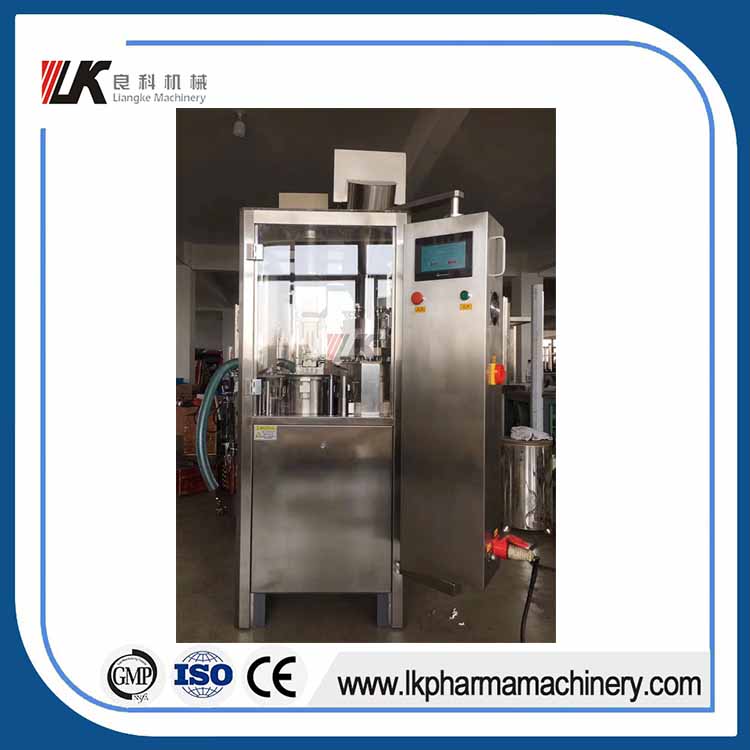

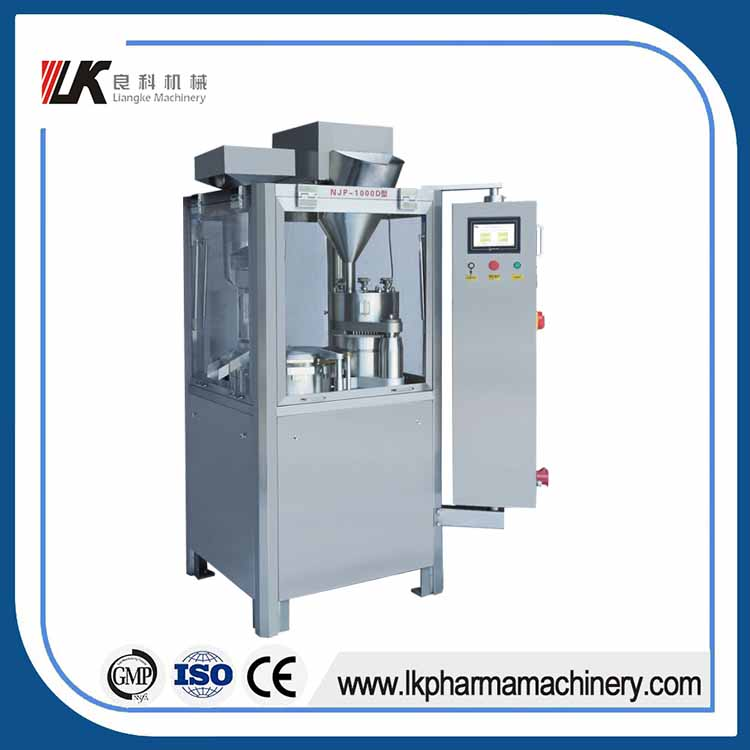

NJP-1000 Fully Automatic Capsule Filling Machine
NJP-1000 model fully automatic filling machine is a new product which replace the semi-automatic capsule filling machine, this equipment is especially suitable for hospitals, medical research institutions, pharmaceutical and health small factories, and they are welcomed by all customers.
Features:
1. The equipment has small volume, low power consumption, east to operate and clean;
2. Products standardized, components can be interchanged, replacement of molds are convenient and accurate;
3. It adopt cam downside design, to increase pressure in atomizing pumps, keep cam slot well lubricated, reduce wearing, thus prolong the working life of the parts;
4. It adopt high precision graduator, little vibration, noise below 80db and use vacuum positioning mechanism to ensure the capsule filling percentage up to 99.9%;
5. It adopt a plane in dose-based 3D regulation, uniform space, effectively guaranteed load difference, rinsing very convenient;
6. It has man-machine interface, complete functions. Can eliminate faults such as materials shortage, capsule shortage and other faults, automatic alarm and shutdown, real-time calculation and accumulation measurement, and high accuracy in statistics.
Main Technical Parameter
| Model No. | NJP-1000 |
| Capacity | 1000 capsules/min |
| Filling type | Powder, Pellet |
| No. of Dose/holes of each mold | 2 |
| Suitable for Capsule | 00#, 0#, 1#, 2#, 3#, 4# |
| Filling error | ±3%-±4% |
| Noise | ≤75dB(A) |
| Voltage | 380V 50Hz 3P |
| Total Power | 3.75Kw |
| Overall Weight | 600Kg |
| Gross Weight | 650Kg |
| Machine Dimension | 750mm. (L)* 680mm(W) *1700mm(H) |
| Packing Dimension | 1600mm. (L) * 1050mm(W) * 1900mm(H) |
