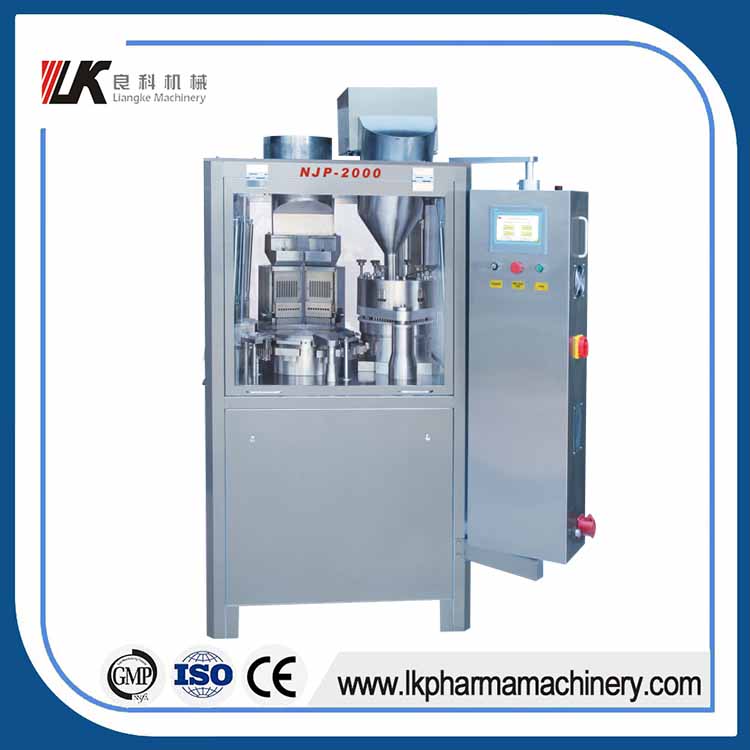

NJP-2000 Fully Automatic Capsule Filling Machine

Product Description



NJP-2000 is designed on the basis of NJP-1200 automatic capsule filling machine to meet the needs of mass production. Its functions has reached the domestic advanced level and is the most ideal equipment for the production of capsule medicine in current pharmaceutical industry.



Features:

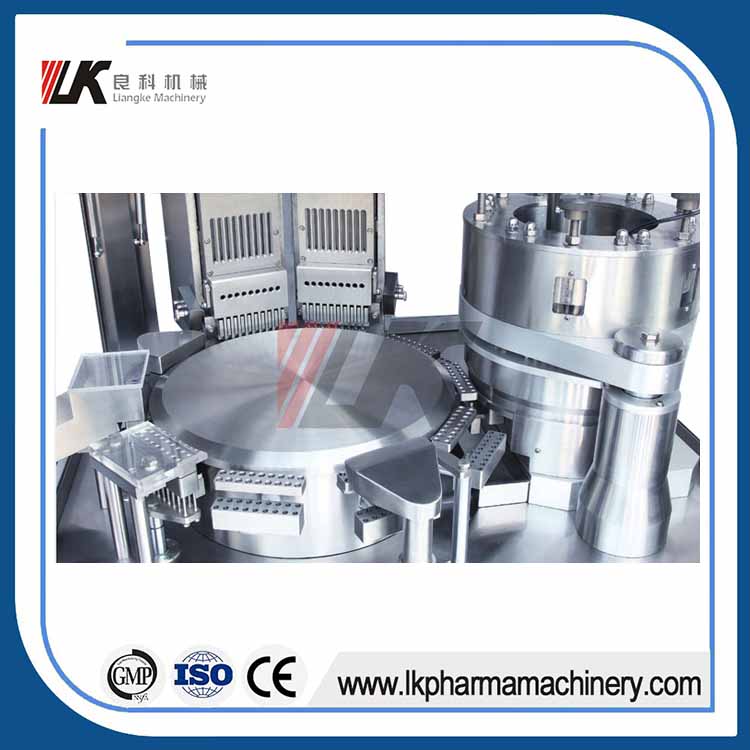

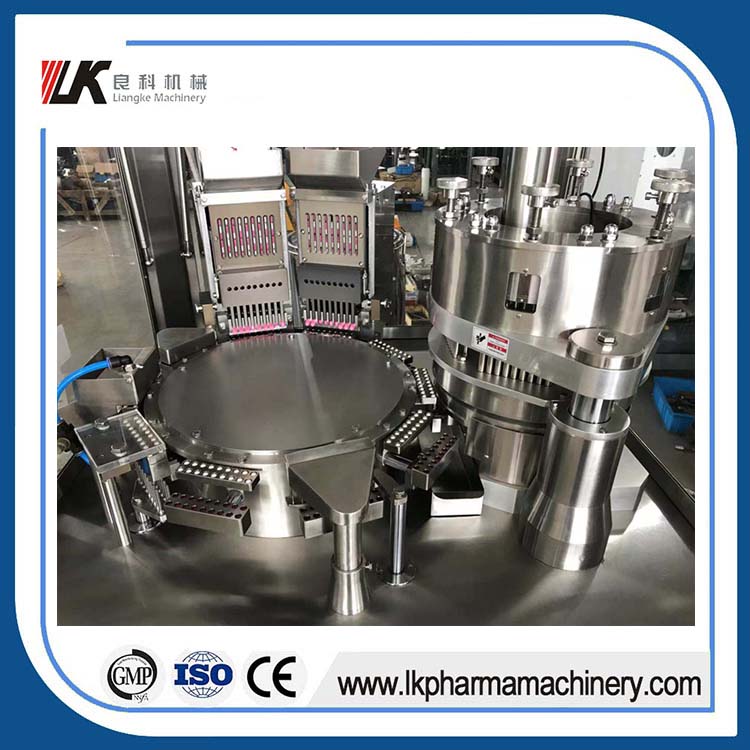

1. The internal design of the mold turntable has been improved, and the original Japanese linear bearing has been adopted to ensure the accuracy and service life of the equipment;

2. Cam downside design is adopted to increase pressure in atomizing oil pump, keep the cam groove lubricated, reduce wear and prolong the service life of the components;

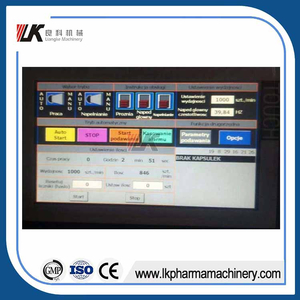

3. Computer control adopted, stepless frequency conversion speed regulation, digital display which is easy to be operated, eye-catching and intuitive;

4. The lower plane of dosing tray is applied as the reference, three-dimensional adjustment, uniform gap, which guarantees the loading difference effectively and accurately, it can be controlled in ±3.5% (the rate of the capsules get on the machine ca be reach 99% when general machanism used , and this machine suitable for filling traditional Chinese medecine and western medicine).;

5. Security device for human and machine are equipped. It also has automatic stop device for material shortage. To achieve stable operation, safe and reliable of the machine. And it's an ideal equipment for producing hard capsule preparation pharmaceuticals' factories, such as medicines and health products.;




Main Technical Parameter

Model No.

NJP-2000

Capacity

2000 capsules/min

Filling type

Powder, granule

No. of Dose/holes of each mold

18

Suitable for Capsule

00#, 0#, 1#, 2#, 3#, 4#

Filling error

±3%-±4%

Noise

≤75dB(A)

Voltage

380V 50Hz 3P

Total Power

6.97Kw

Overall Weight

1300Kg

Gross Weight

1400Kg

Machine Dimension

1200mm. (L)* 1050mm(W) *2100mm(H)

Packing Dimension

1400mm. (L) * 1400mm(W) * 1950mm(H)



Samples

 .jpg
