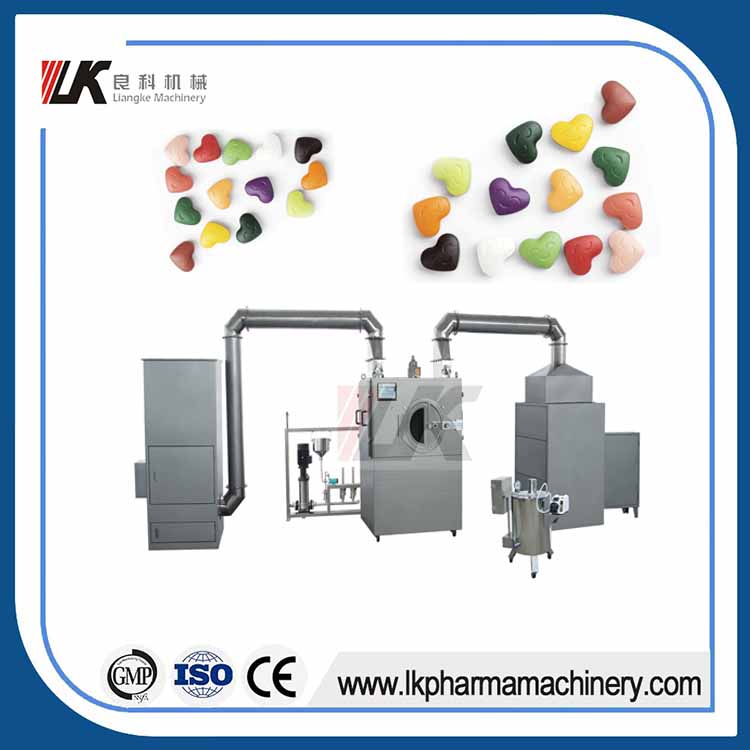

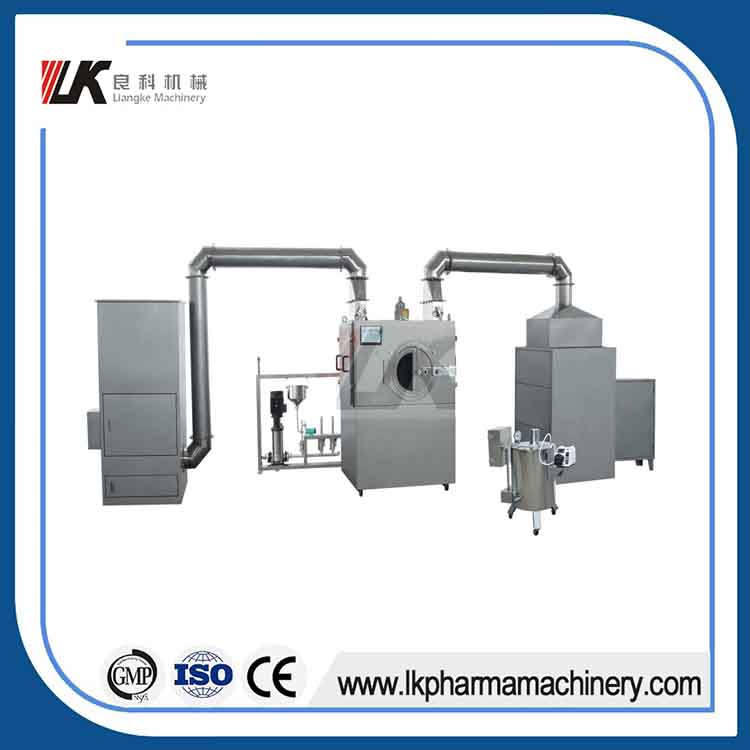

BG-80D Automatic pharmaceutical film coating machine for tablet
The product is an ideal film coating machine in current pharmaceutical industry at home. It can be applied in many fields like pharmacy, food, biological products, etc.. The machine is particularly applied to coat tablets, pills, and candies with all kinds of organic or water-soluble film. As a film coating machine, it is widely applied in pharmacy and food industry. Compared with its similar products, this machine acquires distinct advantages:
1. PLC and temperature module controlling system with the touch screen produced by Siemens Germany are applied to provide picture displaying, convenient operation, energy-efficiency, cleanliness and safety, and convenient cleaning, which meets the standard of GMP.
2. Components, which drugs are exposed to, such as high efficiency film coating mainframe, high efficiency hot air filter, dust removal fan and spray device, are all made of imported stainless steel of good quality.
3. The procedures are all controlled by PLC touch screen, automatically or manually.
4. Coating is processed in totally closed environment to prevent dust and slurry from spilling. The surface of box is polished and its light pollution is eliminated.
5. The driver system applies explosion-proof decelerating motor and chain-wheel transmission device, which can make frequency conversion continuously variable.
6. High efficiency hot air filter can directly capture air from outside, heat the air after primary, intermediated and high efficiency filter, and then provide the air for the mainframe. The air can meet the standard of 100,000 class cleanliness. Dust removal fan can exhaust air to the outside to avoid the influence on central air-conditioning and to save energy.
7. Spray gun is the WA-101 spray gun imported from Japan of good atomization, non-clogging nozzle, adjustable spray volume and angle, and simple structure which is convenient to clean.
Currently, the machine has relatively large market and good prospect at home. It has been applied by lots of factories for many times and passed the inspection of GMP successfully.
During coating, the machine ensures no flying dust or splashing liquid. In this case, it can improve working environment and avoid cross contamination. Besides, the machine can coat tablets through simple techniques so that coating time is drastically shortened and efficiency is much higher. It adopts new micro-computer temperature and negative pressure control system, touch screen for displaying and control and is programmable. These devices can work together to automatically adjust flow, negative pressure, air input, air exhaust, temperature, rotating speed and some other technical parameters. They also make SOP edition digital so that the machine can produce in batches in the same technical parameters. Therefore, there is nearly no difference between products of different batches. The machine also additionally functions to store and print data. Its tens of program for automatic coating can be modified at any time during operation. In addition, printing device can be customized to record technical parameters and process flow of every batch. Users can also input batch number or drug code as needed.
1.Performance and features
Technical Parameters
Items |
Parameters |
|
Model |
BG-80D |
|
Production quantity |
80Kg every batch |
|
Speed range of film coating roller |
3-24 r/min |
|
Diameter of material inlet |
380mm |
|
Diameter of film coating roller |
930mm |
|
Diameter of roller mesh |
3mm |
|
Motor power of mainframe |
1.5KW (The mainframe is totally closed) |
|
Air source (supplied by the user) |
0.8 m3/min Pressure: ≥0.4MPa. |
|
Dimensions |
1390*1040*2080 (L*W*H) | |
PLC |
It can make the frequency conversion continuously variable and set, adjust, display and memorize the technical parameters, operation speed, air inlet speed, spray force and flow during the operation of the complete machine. |
|
Hot air cabinet |
Motor power of hot air filter |
1.5KW (explosion-proof) |
Filter precision |
0.5μm |
|
Filter cleanliness |
100,000 class |
|
Air inlet speed |
2356m³/h (with a class-3 filter) |
|
Hot air temperature |
40~80℃ (adjustable) |
|
Dimensions |
930*750*2080 (L*W*H) |
|
Weight |
350Kg |
|
Dust removal cabinet |
Motor power dust removal fan |
3KW (explosion-proof) |
Air outlet speed |
5268 m3/h |
|
Surface material |
Matt stainless steel |
|
Dimensions |
830*830*1850 (L*W*H) |
|
Weight |
350Kg |
|
Spray gun |
Imported spray gun with uniform atomization, adjustable spray shape, position and angle |
|
Motor power of peristaltic pump |
0.25KW |
|
Peristaltic pump speed |
100-700 r/min |
|
Mainframe weight |
750Kg |
