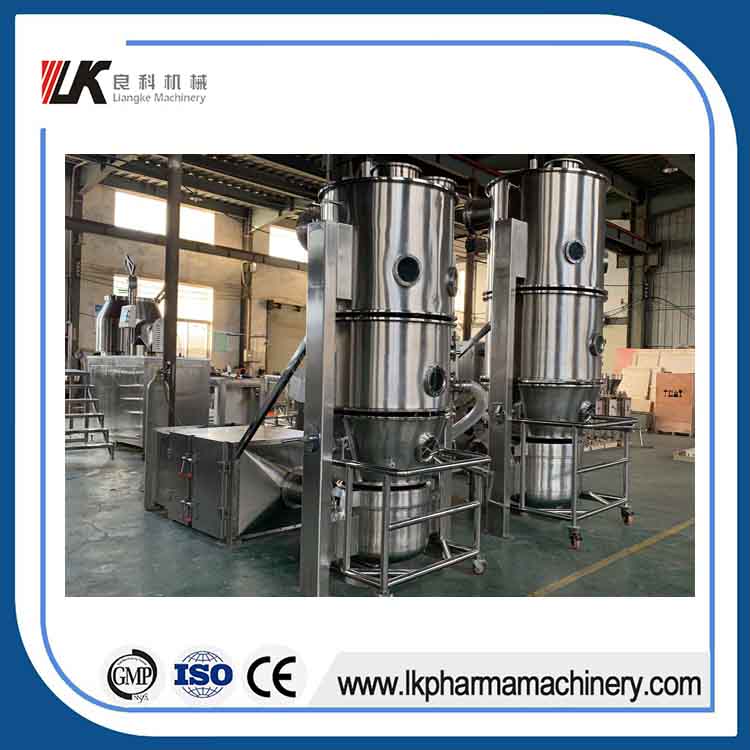

FG-120 All in one lab fluid bed dryer machine with top spray
Product Description
Application Fluid bed is mainly used to granulate and dry granules in industries of pharmacy, foodstuff, chemicals and agricultural product processing. Some products are granules for tables, capsules, instant granules and flavoring granules. During production, the equipment loads material in an enclosed condition to avoid powder flying in operation environment. The machine is controlled by PLC. Material is fed into fluid bed through negative pressure or by blowing.
Top spraying system
Top spraying device consists of a conical material hopper and spraying chamber. Air flows from the bottom of material hopper, through airflow distribution plate and screen and at last, into the machine. If the force generated by airflow is larger than material gravity, material can form a vortex, i.e., fluid bed.
1)Upward airflow pushes material to move upwards. And certain angle inside material hopper makes sure that material can be fluidized fluently in the hopper.
2)Being pushed by airflow, material enters spraying chamber. Spraying chamber is larger than material hopper so that air flows more slowly in the chamber. As a result, material’s speed decreases. Gradually, material gravity become larger than the force generated by airflow, and material drops back to the edge of material hopper. In the whole production process, material moves and recycles up and down between material hopper and spraying chamber and form irregular fluid state.
3)The goal of granulation is to produce dust-free and flowable granules with fine powder. Coating refers to coat fine and uniform granules.
4)During granulation by the top spraying device, powder or particle rises from the bottom of material hopper and becomes fluidized, while adhesive is sprayed into the fluid bed by a spraying gun and then helps granulation. Besides, heat exchange occurs between hot airflow and heated airflow distribution plate, which functions to dry material.
5)Being raised by air, material particles are absolutely exposed into airflow for the best atomizing and drying.
6)If material can be dried, the top spraying device can become a fluid-bed drier after spraying gun is removed.
Product Description
FG (fluid bed drying machine), FL (fluid bed granulating and drying machine (top spray)), FLB (fluid bed coating and drying machine (bottom spray)) and WFB (fluid bed pelletizing and drying machine (tangential spray), all consists of bag shaking chamber, drying and spreading chamber, material chamber, air intake chamber, support frame, auxiliary heating system, ventilator unit and control system.
They're mainly used to granulate and dry granules in pharmaceutical, foodstuff, chemical, agricultural and sideline product processing industries. Such as granules for tablet, instant powder and condiment granules. The process of feeding and discharging material of this equipment should be finished in the airtight space to avoid powder spreading to the operation environment. It‘s controlled by PLC to granulate and dry in fluid bed.
Working Principle
The air flow sucked by the negative pressure of induced draught fan will pass through the air filter, heat exchanger and delivery conduit, finally enter the fluid bed granulating room from the airflow distribution board to blast the raw powder (such as original powder, Polybutene, absorbent, western medicine or food etc.) into boiling fluidized state and start mixing at the same time.
Liquid material and the compressed air for atomizing liquid material enter the sprayer along their respective pipes. The compressed air atomizes the liquid material into fine particles to spray in the fluid bed granulating room, and then mix with raw powder to bond into granules. At the same time, the granules will be dried by hot air and a part of powder rises to the filter bag to be collected. At a certain time, the left exhaust valve closes and the filter bag in left chamber shakes up and down under the action of air cylinder; the powder being shaken off then falls back to the fluid bed to granulate again. After shaking, the left exhaust valve opens again; after a while, the right exhaust valve closes and the filter bag in right chamber shakes.
The filter bags in both chambers shake alternatively to clean the collected powder to keep the filter bag unblocked and finish the process of mixing, drying and granulating.
Advantages
1. Equipment Height
It's higher than normal ones, the cloth bag not easy to be wet and blocked. Materials can be dried completely, drying speed is high, energy consuption is low.
2. Distribution Net
The distribution net between air intake chamber and material chamber are multi-layer, which is rigid, high temperature resistant and not easy to be deformed. Quick installation, quick dismantlement and easy to be cleaned.
The conventional ones have only two layers, a thin piece of stainless steel wire net on a punched plate. Hard to be cleaned, easily broken and transformable. Materials can not dried completely and homogeneously.
3. The insulating layer thickness of the heating cabinet
Insulating layer of the heating cabinet is added to anti-scald and reduce energy consumption. In addition, openable doors adopted, convenient for changing accessories, cleaning and maintenance.
4. Air inlet proportion execution valve and air outlet pneumatic execution valve
These two valves equiped, bag shaking system can be closed tightly to get a good dedusting effect.
5. Steam proportion valve is equipped
Temperature can be kept around the set value (about ±2°C), which is good for maintaining the medical stability and saving steam energy. Only 1/3 energy consumption when the set temperature reached.
6. Pressure relief device - the top relief valve
The fluidized bed chamber is in a state of negative pressure normal production, if it is in positive state then pressure will be relieved from the pressure relief port to avoid explosion and other unexpected accidents.

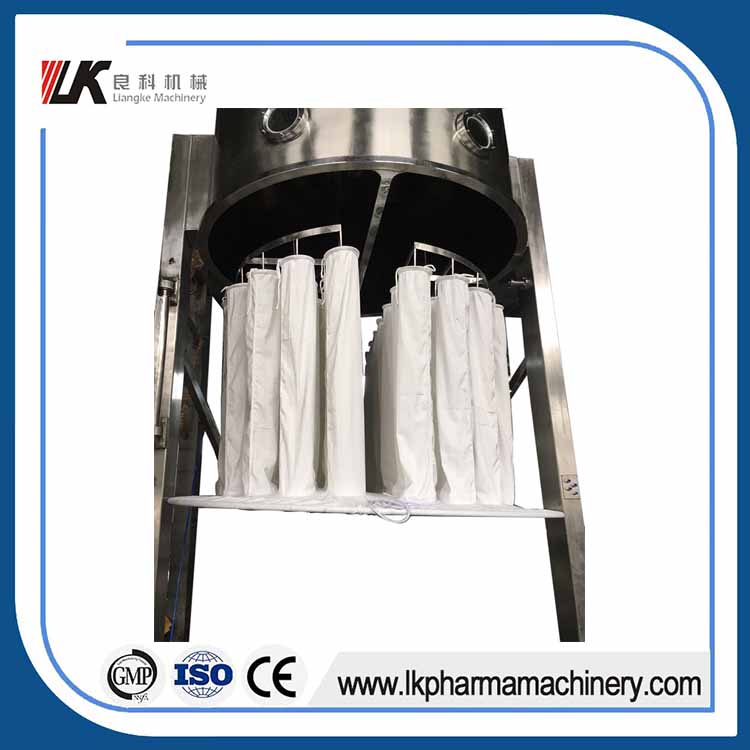

7. Bag shaking device
The bag shaking device is divided into two parts, left and right ones with many small cloth bags, and with continuously shaking and dedusting function.
The more cloth bags are designed, the larger area can be used for filter and dry, high efficiency, fast speed, time and energy saved. While, normal machine only has a one-piece shaking bag without any small bags. Bags can be shook only after the machine stops. Low efficiency, slow drying speed, long time and large energy wasted. Besides, our bag shaking device has a pneumatic location device to fix and protect bags for better dust removal effect. And the bottom of the device extends to the outside of the chamber to guarantee practicality. Some other factories’ apply gas seal at the device bottom, but after a long time of high temperature operation, the chamber will transform and sealing will not be tight any more. Therefore, material will be run off and great loss will be caused.

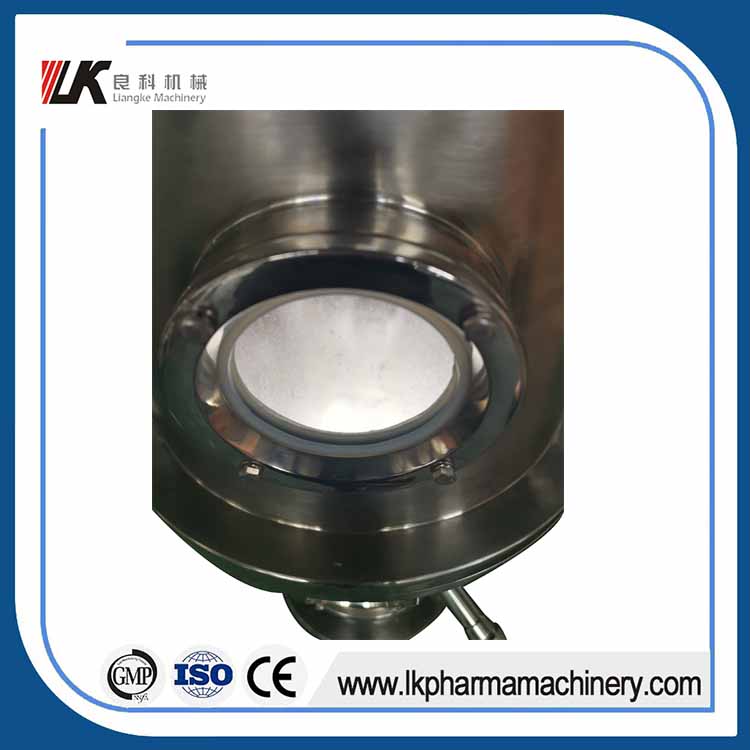

8. Observation light is installed in the chamber
Compared with other manufacturers, it is in the outside, the operation and drying conditions inside the chamber cannot be observed clearly.
9. Moreover, according to different countries geographically location (in humidity) and different environmental requirements,
dehumidification and second dust removal system can be adopted to achieve their requirements of material, techniques and environment protection.
Components
System name
Components
Configurations
Material
Air inlet processing system
Filter
Primary-efficiency filter (100-mesh SS screen)
screen
Medium-efficiency filter (preposition)
Non-woven
High-efficiency filter (heat-resistant)
Filter paper
Heater
Spiral fin; Steam as heat source
SS304
Steam valve
Angle seat valve; Switch to control temperature
/
Cabinet
Double layer for thermal insulation
SS304/insulation cotton
Air inlet pipe
Offering according to installation; Quick-closing valve is equipped for heat-resistant cylinder
SS304
Main machine
Filtering chamber
Double chamber vibration for cleaning; silicone strip for sealing; anti-rotary device for cleaning cylinder
SS304
Spraying chamber
Top spraying: installation base for quick-dismantling spraying gun and sight glass
Base
Sealer base; sealed by airbag; hanging; automatic draining valve at the lowest point
Column
Double-column; cables are inside the columns
Material feeding port
Vacuum feeding valve and sanitary elbow clamp
Observing light
To observe material state
Control device
Pressure reducing valve and air source processing components are all bought from famous brands.
/
Air exhaust
Induced draft fan
Centrifugal and special high-voltage fan (18.5KW); being installed with shock absorber when installed on a floor.
Q195
Main Technical Parameters
Item Parameter
FG-120 Fluid Bed Dryer
Material tank
Volume
L
420
Diameter
MM
1200
Production capacity
Kg/batch
60-120
Power supply
Three-phase
380V/50HZ or customized
Steam
pressure
MPa
0.4-0.6
Consumption
Kg/h
180
Compressed air
Pressure
MPa
0.5-0.7
Consumption
Kg/h
0.8
Draught fan
Power
Kw
18.5
Material temperature
℃
Auto-control and auto-display
Application range
Mainly used for producing and drying the instant granules, tablets and capsules in both Chinese and western medicines.
Obtaining ratio
%
≥99%
Product moisture
%
Can reach 1%-5% after drying
Noise
db
With isolating treatment, the noise of draught fan is less than 75 dB.
Material
Stainless steel for all the machine and SUS304 for surface with matte treatment, mirror-polish until Ra 0.3-0.5 inside.
Sealing type
Head pressure type with pneumatic cylinder, good sealing effect.
Filtration of inlet air
It’s equipped with primary, medium and sub-high efficiency filters, so the air filtration level reaches 100000 (3μm).
Air capacity regulation
Frequency control to regulate the air capacity.
Steam heater
Use steam to heat, the material of heater is SUS304
Control method

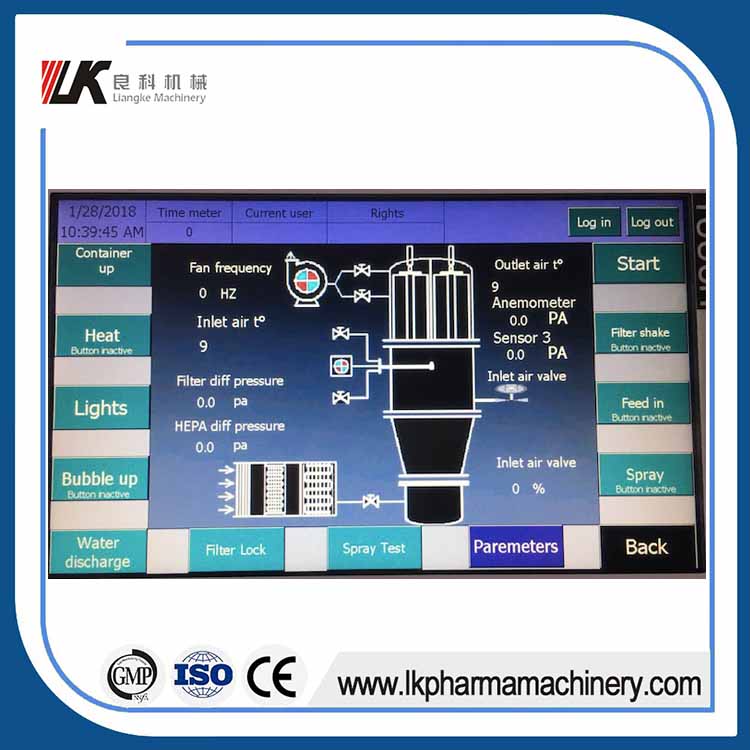

PLC control, frequency converter regulating the air capacity, touch screen operating system, Chinese operation interface.
Steam angle seat valve
Famous brand with high temperature control precision.
GMP standard
Designed and manufactured according to GMP standard, in accordance with GMP requirements.
Product standard
According to JB/T13755-92 standard
Machine dimension
Refer to the installation drawing
QVC-3 Vacuum Feeding Machine
Technical parameters
Model
QVC-3
Max. feeding speed
800-1500Kg/h
Air consumption
720L/min
Air pressure
0.4-0.6MPa
Overall dimensions
¢290×850
CIP Cleaning System
Introduction
This cleaning machine consists of machine frame, water pipeline, cleaning ball, high pressure increasing pump, control valve and control system. After being connected with other equipment and turned on, the machine can automatically work.
