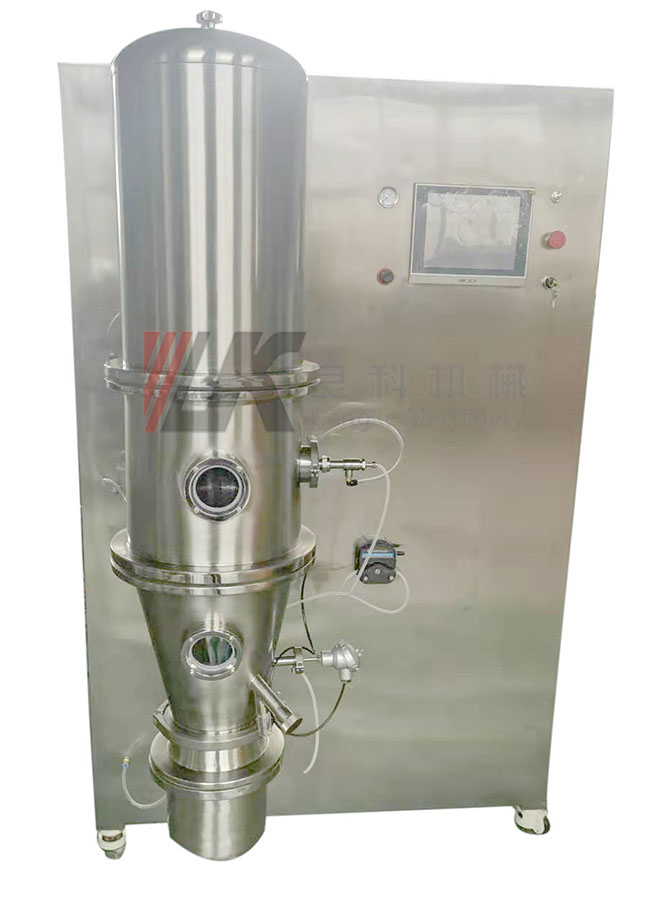

FG-15 All in one lab fluid bed dryer machine with top spray
Product Description
Product Description
FG (fluid bed drying machine), FL (fluid bed granulating and drying machine (top spray)), FLB (fluid bed coating and drying machine (bottom spray)) and WFB (fluid bed pelletizing and drying machine (tangential spray), all consists of bag shaking chamber, drying and spreading chamber, material chamber, air intake chamber, support frame, auxiliary heating system, ventilator unit and control system.
They're mainly used to granulate and dry granules in pharmaceutical, foodstuff, chemical, agricultural and sideline product processing industries. Such as granules for tablet, instant powder and condiment granules. The process of feeding and discharging material of this equipment should be finished in the airtight space to avoid powder spreading to the operation environment. It‘s controlled by PLC to granulate and dry in fluid bed.
Application
Fluid bed is mainly used to granulate and dry granules in industries of pharmacy, foodstuff, chemicals and agricultural product processing. Some products are granules for tables, capsules, instant granules and flavoring granules. During production, the equipment loads material in an enclosed condition to avoid powder flying in operation environment. The machine is controlled by PLC. Material is fed into fluid bed through negative pressure or by blowing.
Working Principle
The air flow sucked by the negative pressure of induced draught fan will pass through the air filter, heat exchanger and delivery conduit, finally enter the fluid bed granulating room from the airflow distribution board to blast the raw powder (such as original powder, Polybutene, absorbent, western medicine or food etc.) into boiling fluidized state and start mixing at the same time.
Liquid material and the compressed air for atomizing liquid material enter the sprayer along their respective pipes. The compressed air atomizes the liquid material into fine particles to spray in the fluid bed granulating room, and then mix with raw powder to bond into granules. At the same time, the granules will be dried by hot air and a part of powder rises to the filter bag to be collected. At a certain time, the left exhaust valve closes and the filter bag in left chamber shakes up and down under the action of air cylinder; the powder being shaken off then falls back to the fluid bed to granulate again. After shaking, the left exhaust valve opens again; after a while, the right exhaust valve closes and the filter bag in right chamber shakes.
The filter bags in both chambers shake alternatively to clean the collected powder to keep the filter bag unblocked and finish the process of mixing, drying and granulating.
Advantages

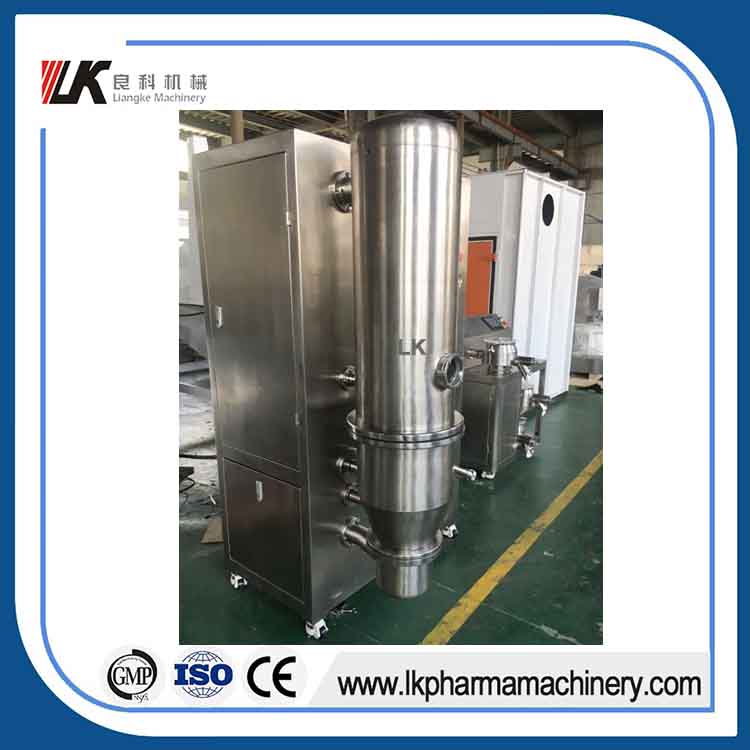

1. Equipment Height
It's higher than normal ones, the cloth bag not easy to be wet and blocked. Materials can be dried completely, drying speed is high, energy consuption is low.
2. Distribution Net
The distribution net between air intake chamber and material chamber are multi-layer, which is rigid, high temperature resistant and not easy to be deformed. Quick installation, quick dismantlement and easy to be cleaned.
The conventional ones have only two layers, a thin piece of stainless steel wire net on a punched plate. Hard to be cleaned, easily broken and transformable. Materials can not dried completely and homogeneously.
3. The insulating layer thickness of the heating cabinet
Insulating layer of the heating cabinet is added to anti-scald and reduce energy consumption. In addition, openable doors adopted, convenient for changing accessories, cleaning and maintenance.

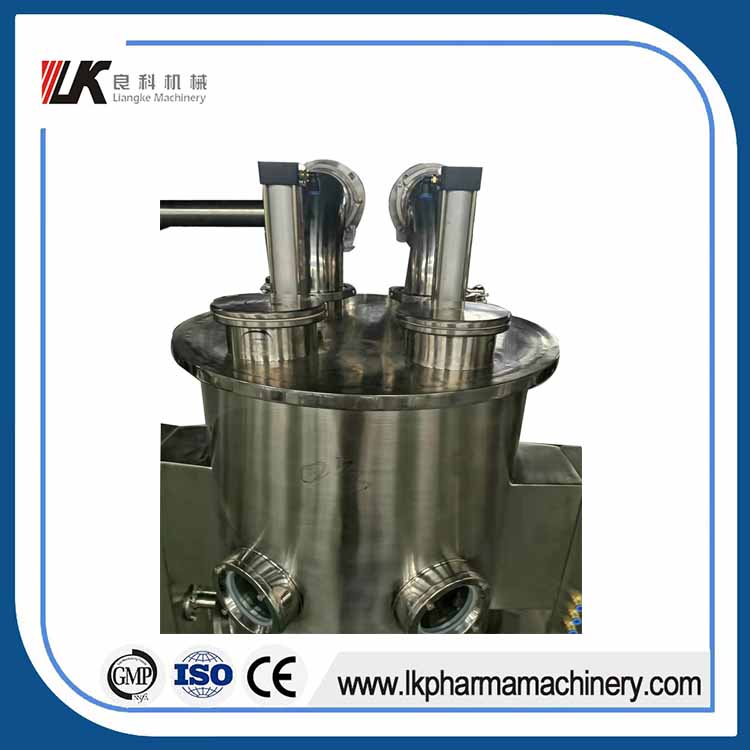

4. Air inlet proportion execution valve and air outlet pneumatic execution valve
These two valves equiped, bag shaking system can be closed tightly to get a good dedusting effect.
5. Steam proportion valve is equipped
Temperature can be kept around the set value (about ±2°C), which is good for maintaining the medical stability and saving steam energy. Only 1/3 energy consumption when the set temperature reached.
6. Pressure relief device - the top relief valve
The fluidized bed chamber is in a state of negative pressure normal production, if it is in positive state then pressure will be relieved from the pressure relief port to avoid explosion and other unexpected accidents.

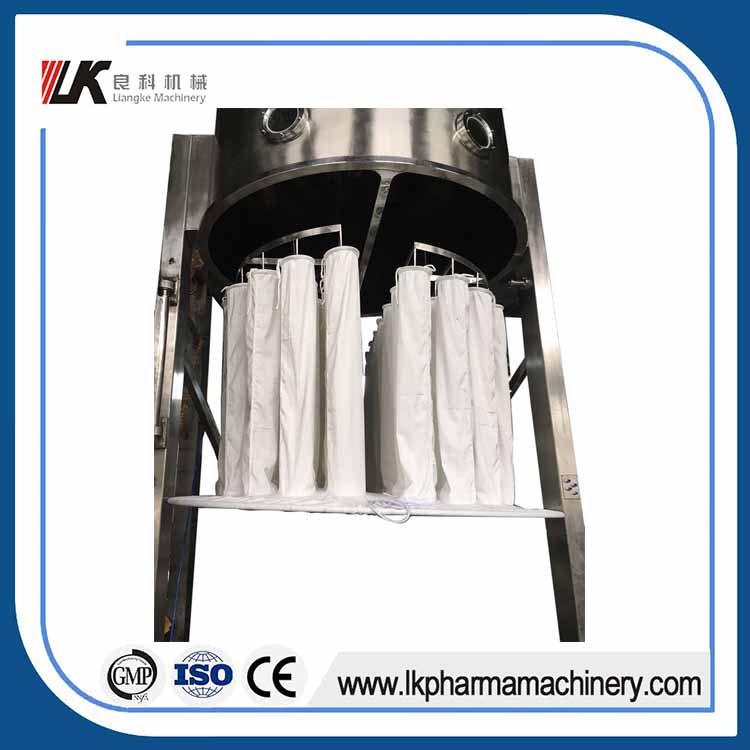

7. Bag shaking device
The bag shaking device is divided into two parts, left and right ones with many small cloth bags, and with continuously shaking and dedusting function.
The more cloth bags are designed, the larger area can be used for filter and dry, high efficiency, fast speed, time and energy saved. While, normal machine only has a one-piece shaking bag without any small bags. Bags can be shook only after the machine stops. Low efficiency, slow drying speed, long time and large energy wasted. Besides, our bag shaking device has a pneumatic location device to fix and protect bags for better dust removal effect. And the bottom of the device extends to the outside of the chamber to guarantee practicality. Some other factories’ apply gas seal at the device bottom, but after a long time of high temperature operation, the chamber will transform and sealing will not be tight any more. Therefore, material will be run off and great loss will be caused.

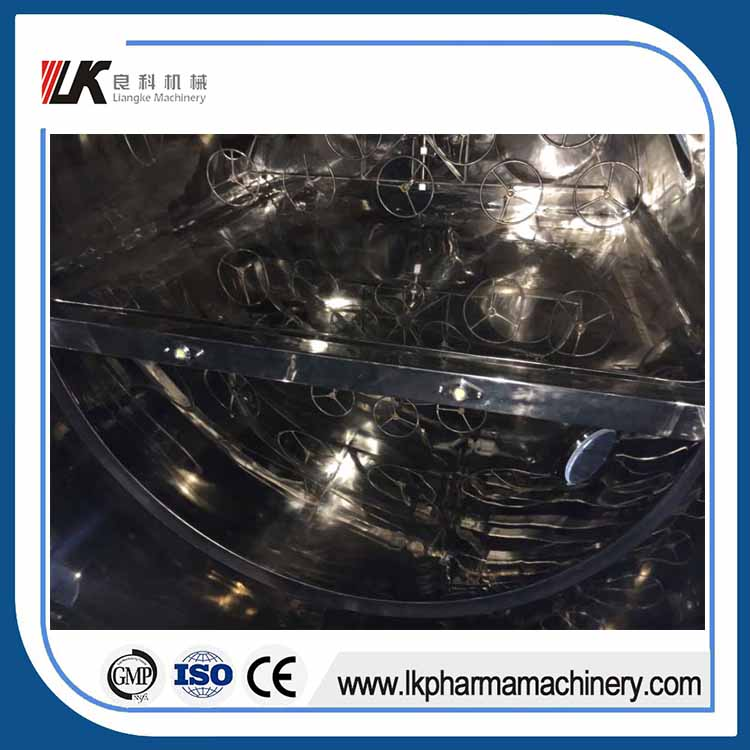

8. Observation light is installed in the chamber
Compared with other manufacturers, it is in the outside, the operation and drying conditions inside the chamber cannot be observed clearly.
9. Moreover, according to different countries geographically location (in humidity) and different environmental requirements,
dehumidification and second dust removal system can be adopted to achieve their requirements of material, techniques and environment protection.
Sample Display
Main Technical Parameters
Item Parameter
FG-15 Fluid Bed Dryer
Material tank
Volume
L
50
Diameter
MM
480
Production capacity
Kg/batch
5-15
Power supply
Three-phase
380V/50HZ or customized
Steam
pressure
MPa
0.4-0.6
Consumption
Kg/h
15
Compressed air
Pressure
MPa
0.4-0.7
Consumption
Kg/h
0.3
Draught fan
Power
Kw
5.5
Material temperature
℃
Auto-control and auto-display
Application range
Mainly used for producing and drying the instant granules, tablets and capsules in both Chinese and western medicines.
Obtaining ratio
%
≥99%
Product moisture
%
Can reach 5‰-3% after drying
Noise
db
With isolating treatment, the noise of draught fan is less than 75 dB.
Material
Stainless steel for all the machine and SUS304 for surface with matte treatment, mirror-polish until Ra 0.3-0.5 inside.
Sealing type
Head pressure type with pneumatic cylinder, good sealing effect.
Filtration of inlet air
It’s equipped with primary, medium and sub-high efficiency filters, so the air filtration level reaches 100000 (3μm).
Air capacity regulation
Frequency control to regulate the air capacity.
Steam heater
Use steam to heat, the material of heater is SUS304.
Control method
PLC control, frequency converter regulating the air capacity, touch screen operating system, Chinese operation interface.
Steam angle seat valve
Famous brand with high temperature control precision.
GMP standard
Designed and manufactured according to GMP standard, in accordance with GMP requirements.
