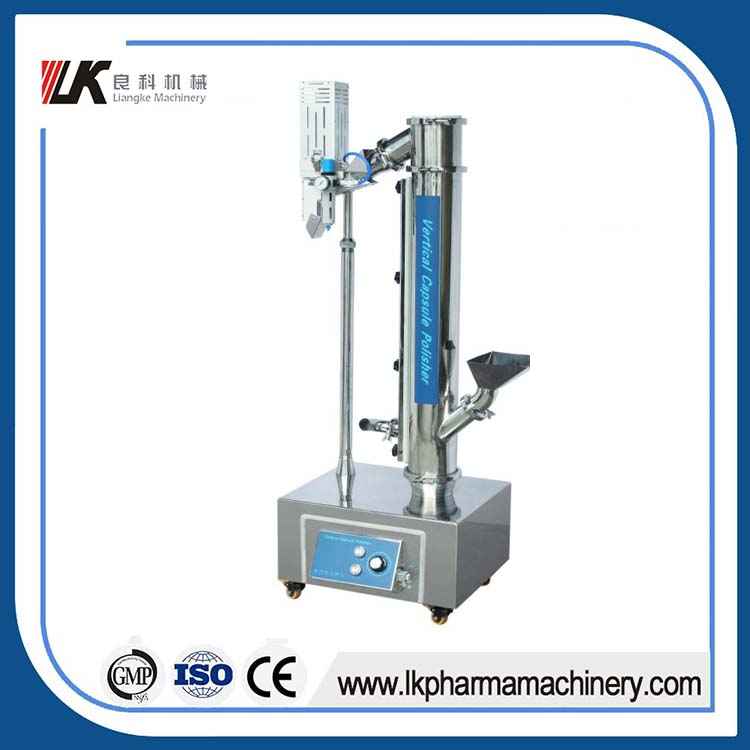

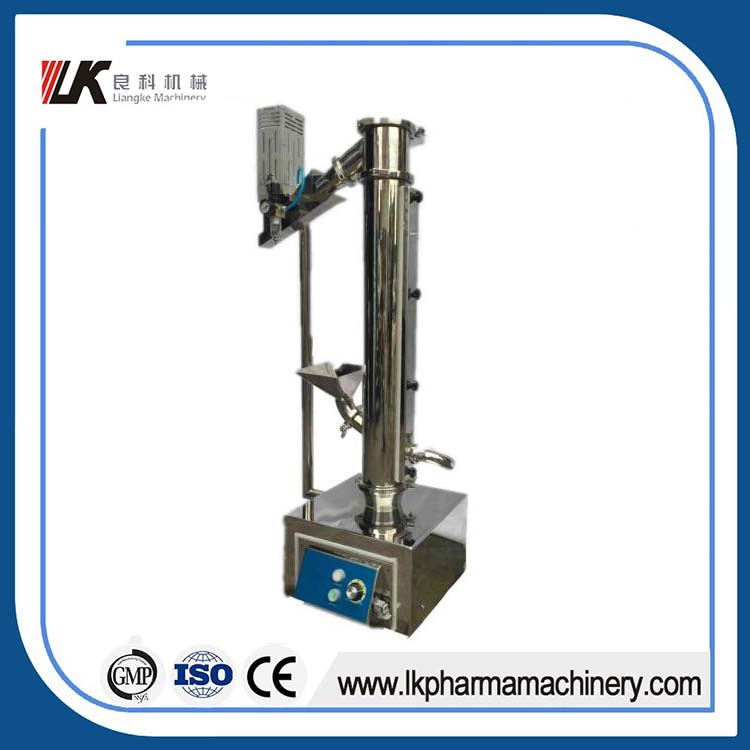

LFP-150A capsule polishing polisher, it can polish and improve the surface of hard capsules. It can match with capsule filling machine of any model, while the exit can connect with capsule sorting device and metal detecting device. Therefore, we can connect them as a full automatic production line, including polishing, improving, sorting and detecting. There are various of new technologies and human-friendly designs are applied for the machine to acquire the following advantages:
1.The machine can function to both polish and improve capsules. Therefore, more height space can be left for subsequent equipment.
2.The machine entrance and exit can be turned at 360° to make the production convenient and to save space.
3.Capsule sorting device can sort out capsules which are not fully filled, empty, broken or whose caps and bodies are separated.
4.The machine applies quick-installation connection structure for more convenient and quicker dismantlement and installation.
5.The parts contacting with medicines are made of SUS#316L or other materials complying with modern pharmaceutical requirements.
6.The brush on the spindle can be dismantled. Without dead corner, the complete machine can be cleaned absolutely and comply with the requirements of GMP.
Model LFP-150A
| Model | LFP-150A |
| Appropriate capsules | 00#, 0#, 1#, 2#, 3#, 4# |
| Maximum production efficiency (pcs/h) | 450000 |
| Entrance height (mm) | 730 |
| Exit height (mm) | 1100 |
| Power supply | 1PH, 220V/110V, 50 Hz/60Hz, 0.20kw |
| Compressed air | 0.3m3/min 0.3Mpa |
| Vacuum dedusting | 3.0 m3/min -0.014Mpa |
| Overall dimensions (mm) | 740*510*1500 |
| Weight (Kg) | 80 |
Configuration list
| Name | Model | Brand | Qty | Remarks |
| Motor | 100YS200GY22 | JSCC | 1 | |
| Start button | 2B2-BE101C | SCHNEIDER | 2 | |
| Frequency converter | SIEMENS V20 | SIEMENS | 1 | |
| Speed controller | WTH116-1A | SCHNEIDER | 1 | |
| Filter | LFR-1/4-D-MN-MA | FESTO | 1 | |
