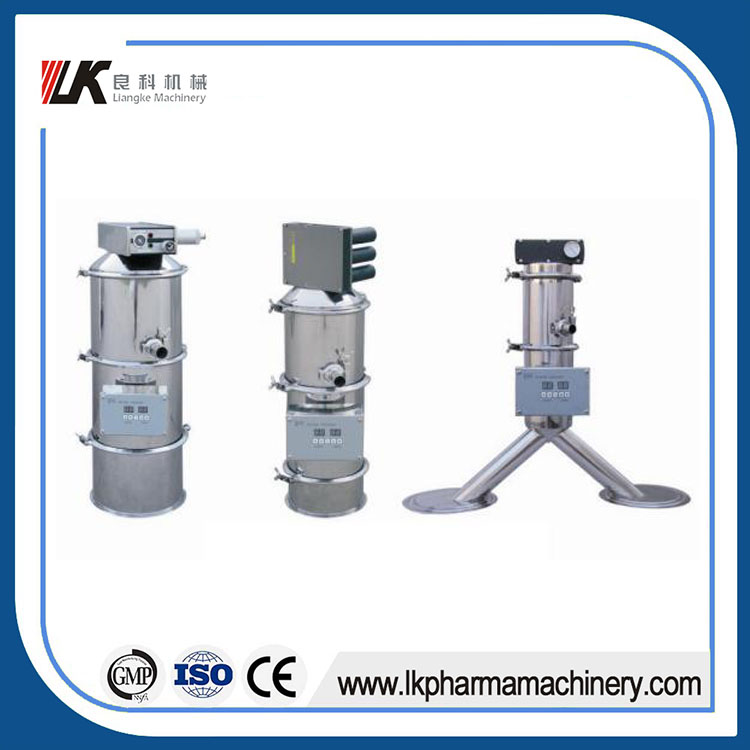

QVC Series Pneumatic Vacuum Conveyer (Vacuum Feeding )
Application

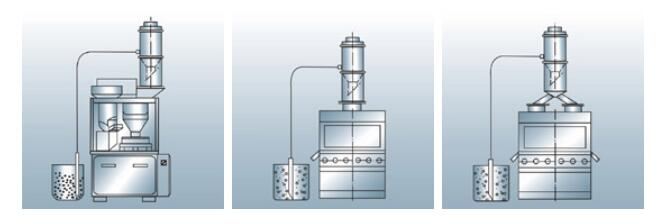

QVC series pneumatic vacuum conveyer is used in automatic feeding material for tablet press machine, capsule filling machine, packing machine, pulverizing machine, screen machine and mixing machine. It does not need any mechanical vacuum pump, so it is simple structure, small volume, without repairing, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. It was designed according to international standard. It is easy to clean. It is up to GMP requirement.
Features:
1) Solves the problem thoroughly about the separating layer of material
2) The sintered-metal filter is Japanese original
3) Can be removed the material static electricity
4) Airtight without crossed contamination
5) Made of good quality stainless steel
6) Made of non-toxic and corrosion resistant material
7) Filter is easy to clean
8) Controlled intelligently and automatically
9) Easily dismantled with building block structure
10) Easy to set up, small volume, lightweight
11) No noise and no screening
12) Economical, practical, economical
Main Technical Specifications
|
Model |
Transportation Capacity (kg/h) |
Air Pressure(Mpa) |
Air Consume(L/min) |
Overall Size(mm) |
|
QVC-1 |
350 |
0.4-0.6 |
180 |
Φ140×560 |
|
QVC-2 |
700 |
0.4-0.6 |
360 |
Φ213×720 |
|
QVC-3 |
1500 |
0.4-0.6 |
720 |
Φ290×850 |
|
QVC-4 |
3000 |
0.4-0.6 |
1440 |
Φ420×1150 |
|
QVC-5 |
6000 |
0.4-0.6 |
2880 |
Φ420×1150 |
|
QVC-6 |
9000 |
0.4-0.6 |
4320 |
Φ420×1350 |
