Applications:

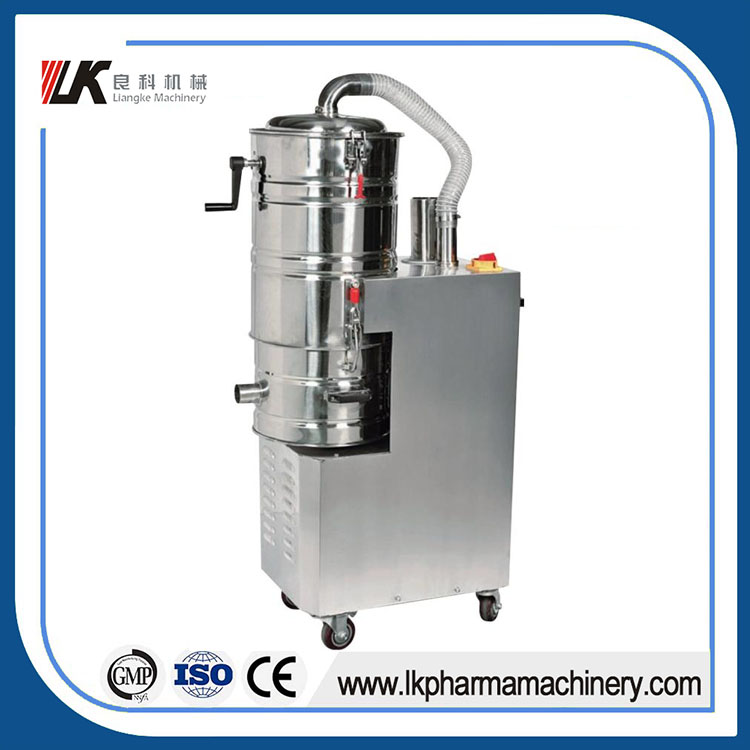

This machine is wide used in collecting industrial dust. It can be served in pharmaceutical industry, it is tablet press machine, granulating machine, pulverizing machine ,counting machine , capsule filling machine and capsule polishing machine etc.
Features:
Stainless Steel structure, good corrosion resistance.
Large air flow, high vacuum suction.
Simple operation, convenient maintenance.
Dust material can be recycled, comply with GMP requirements.
Adopt the silencing technology, low noise, stable running
Main Technical Specifications:
| Model | YCD-110 | YCD-220 | YCD-300 |
| Max. Flow | 140m3/h | 215m3/h | 305m3/h |
| Motor power | 1.1 kw | 2.2 kw | 3 kw |
| Max. Vacuum | 16500Pa | 20500Pa | 21500Pa |
| Air Flow | 2400L/min | 5100L/min | 6400L/min |
| Noise | ＜ 63db (A) | ＜ 72db (A) | ＜ 75db (A) |
| Overall Size | 700*460*1030mm | 750*600*1400mm | 900*800*1600mm |
| Net Weight | 95kg | 140kg | 180kg |
