Application

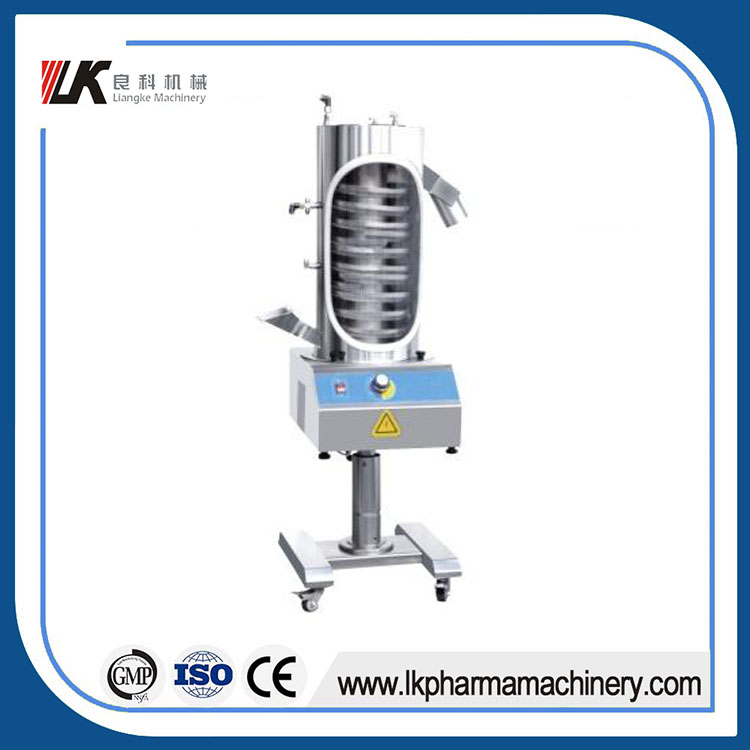

SZS-200 Uphill Tablet De-duster is a special equipment to wipe out burr and dust of tablet whilst going up way. It can be connected with tablet press and metal detection systems. 316Lstainless steel are used for all metal parts contacting tablets. Design of GMP.
Main Technical Specifications
| Model | SZS-200 |
| Max. Output(tablets/h) | 800000( Ø6mm) |
| Rated Power (W) | 150 |
| De-dust Route(M) | 6.2 |
| Max. tablet (mm) | Ø25 |
| Power Supply | 110V /220V 50Hz/60 Hz 1P |
| Compressed air | 0.1m3/min. 0.05MPa |
| Vacuum | 2.7m3/min. 0.01MPa |
| Max. Noise (dB(A)) | ＜75 |
| Overall Dimension <L*W*H> (mm) | 500X550X1350-1500 |
| Weight(kg) | 70 |
