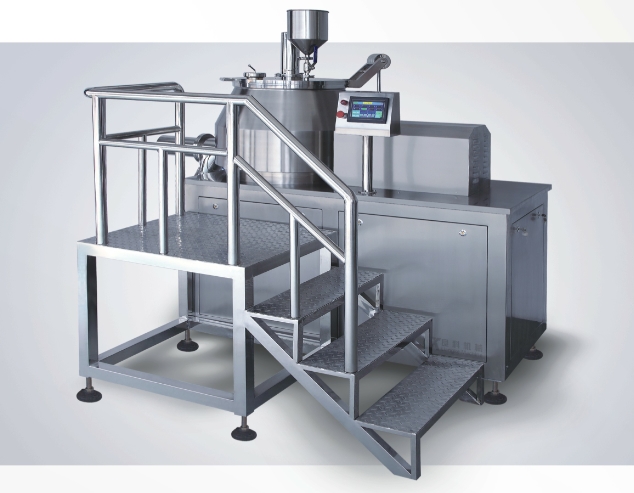

HLSG-series Super Mixing Granulator
Main Technical Parameters
Model |
HLSG-600 |
Hopper Volume |
600L |
Material input quantity |
75—220KG/batch (the material density is 0.5 g/ml) |
Operating time |
Mixing about 8 minutes, granulating 15-20 minutes for each batch. |
Finished granule size |
About Φ0.14-Φ1.5mm (12-100 meshes) |
Hybrid motor |
30KW 6 magnetic poles |
Revolution speed of mixing paddle (controlled by frequency converter) |
20-200 r/min |
Granulating motor |
11KW 2 magnetic poles |
Revolution speed of granulating blade (controlled by frequency converter) |
50-3000 r/min |
Compressed air |
0.3m3 0.7Mpa (provided by users themselves) |
Cooling water connector |
Φ10mm |
Compressed air connector |
Φ10mm |
Height of discharge port |
1200mm |
Main frame dimension (L×W×H) |
2980×1200×2500mm |
Weight |
2300kg |
SZ Series Wet Type Pelletizer
SZ-600 Wet Type Pelletizer
Technical Parameters
Model |
SZ-300 |
Motor power(KW) |
5.5 |
Production capacity(Kg/h) |
100~500 |
screen mesh size(Mm) |
3×3-8×8(choose any one) |
Revolution speed(rpm) |
The maximum speed can be regulated to 1600 by frequency converter. |
Revolution speed of cutter(rpm) |
200~1600 |
Screen net shape |
Square: suitable for wet granules pelletizing |

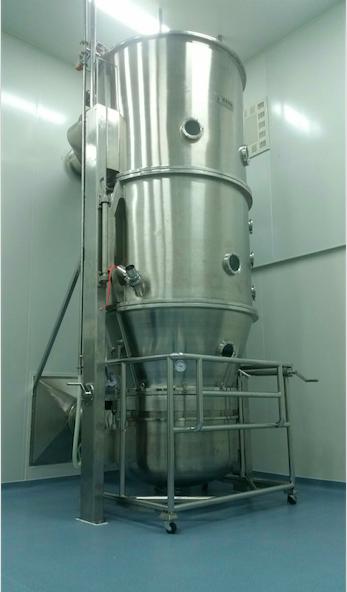

FL-200 Fluid Bed Granulating Drier
Machine Photo
Application

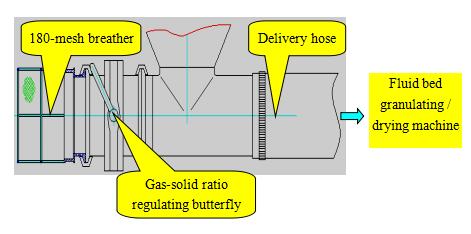

Fluid-bed processing is mainly used for the mixing of powder material, drying and granulating (coating) in pharmaceutical, food, chemical, agricultural and sideline product processing industries, such as tablet, instant powder and condiment granules. The process of feeding and discharging material for this equipment should be finished in the airtight space to avoid powder spreading to the working environment. It‘s controlled by PLC. For wet type granulating machine, it adopts negative pressure or air blast to make the finished granules enter the fluid bed for drying in airtight way.
Main Technical Parameters
Item Parameter |
FL-200 Fluid Bed Granulating and Coating Machine |
||
Material tank |
Volume |
L |
670 |
Diameter |
MM |
1400 |
|
Production capacity |
Kg/time |
160-240 |
|
Power supply |
Three-phase |
380V/50HZ |
|
Steam |
pressure |
MPa |
0.4-0.6 |
Consumption |
Kg/h |
280 |
|
Compressed air |
Pressure |
MPa |
0.4-0.7 |
Consumption |
Kg/h |
1.2 |
|
Draught fan |
Power |
Kw |
22 |
Material temperature |
℃ |
Auto-control and auto-display |
|
Application range |
|
Mainly used for producing and drying the instant granules, tablets and capsules in both Chinese and western medicines. |
|
Obtaining ratio |
% |
≥99% |
|
Product moisture |
% |
Can reach 5‰-5% after drying |
|
Noise |
db |
With isolating treatment, the noise of draught fan is less than 75 dB. |
|
Material |
Stainless steel for all the machine and SUS304 for surface with matte treatment, mirror-polish until Ra 0.3-0.5 inside. |
||
Sealing type |
Head pressure type with pneumatic cylinder, good sealing effect. |
||
Filtration of inlet air |
It’s equipped with primary, medium and sub-high efficiency filters, so the air filtration level reaches 100000 (3μm). |
||
Air capacity regulation |
Frequency control to regulate the air capacity. |
||
Steam heater |
Use steam to heat, the material of heater is SUS304 |
||
Control method |
PLC control, frequency converter regulating the air capacity, touch screen operating system, Chinese operation interface. |
||
Steam angle seat valve |
Famous brand with high temperature control precision. |
||
GMP standard |
Designed and manufactured according to GMP standard, in accordance with GMP requirements. |
||
Product standard |
According to JB/T13755-92 standard |
||
Machine dimension |
Refer to the installation drawing |
