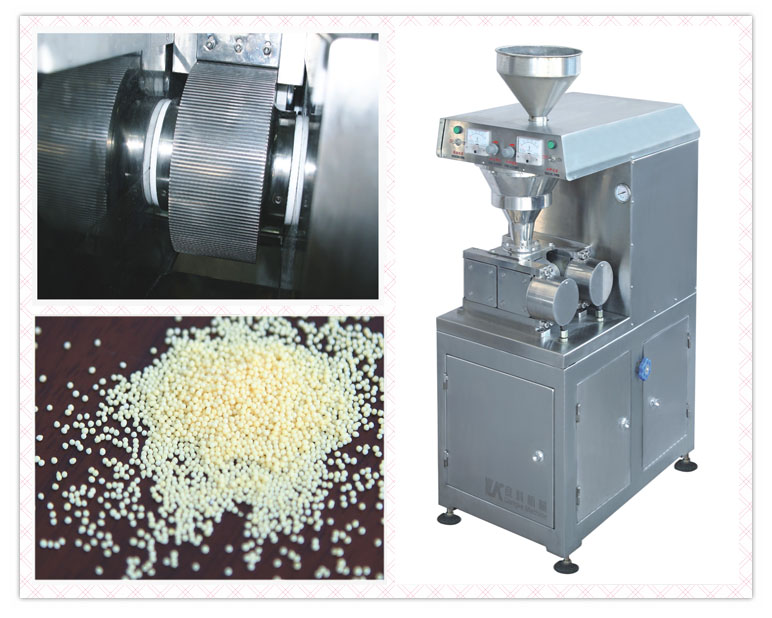

ZKG-5 High efficient dry powder granulator machine
Product Description
Rolling compactor is a new type of pharmaceutical equipment developed in recent years in the world. It is widely used in pharmaceutical, chemical, food and other industrial production. The raw material is directly dried and dry extruded into granules using only the crystallization water of the material itself .It not only simplifies the process but also improves the quality of the product. At present, the models produced internationally can be basically divided into two types: high pre-compaction type and low pre-compaction type. In terms of appearance, it can be divided into closed and open types. In terms of yield, it ranges from 5 kg per hour to 100 kg per hour. What we introduce here is our company's third generation product Rolling Compactor-100.It is a high pre-compaction type and a closed general-purpose machine applicable for pharmaceutical production and chemical and food industries.
Working Principle
Advantages
Characteristics
1.There is no need to use wetting agent as water or alcohol to avoid instability of granule production.
2.As saving the working procedures (wetting, mixing and drying), it has high efficiency.
3.The materials are compressed by pre-pressure to form into good tablets with high density, uniform quality and no fracture phenomenon.
4.The whole machine is made by imported high-quality stainless steel, small and easy to clean, meeting the GMP requirements.
5.It’s suitable for product research & development and small-batch production.
Main technical parameters
Model |
ZKG-5 |
Max Production Capacity |
5-10KG/h |
Granule Specification |
0.4-2mm |
Maxium Thrust |
6.87T |
Pinch Roller Size |
φ100*35 |
Pinch Roller Rotating Speed |
0-20rpm
|
Feeding Speed |
0-24rpm |
Crushing Granulation Speed |
60-180rpm |
Highest Working Oil Pressure |
10MPa |
Feeding Motor Power
|
0.37KW |
Pinch Roller Motor Power |
1.1KW
|
Crushing Granulation Motor Power |
0.55KW |
Total Power |
2KW |
Overall Dimension (L*W*H) |
850*650*1500mm |
Weight (KG) |
230KG |
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.
