Tablet Press

Effervescent tablet press ZP11D

Product ID: Tablet Press
Brand Name: Liangke
Certification: CE,GMP,ISO
Price: negotiable
Payment Terms: TT,L/C,West Union
Delivery Time: 30 working days upon receipt of payment
INQUIRY

Effervescent tablet press ZP11D

Application

This machine is a continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Main Feature

1.This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.

2.During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.

3.The mechanical buffer unit will prevent punches and apparatus from overload damage.

4.A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.

5.This machine has won the fine Quality Product Prize awarded by China National Medical Management Bureau.

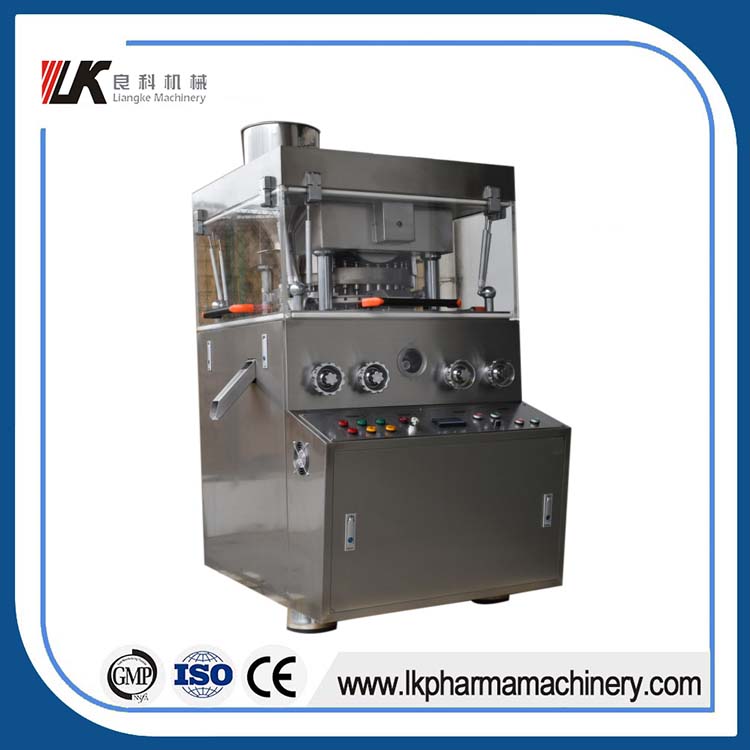

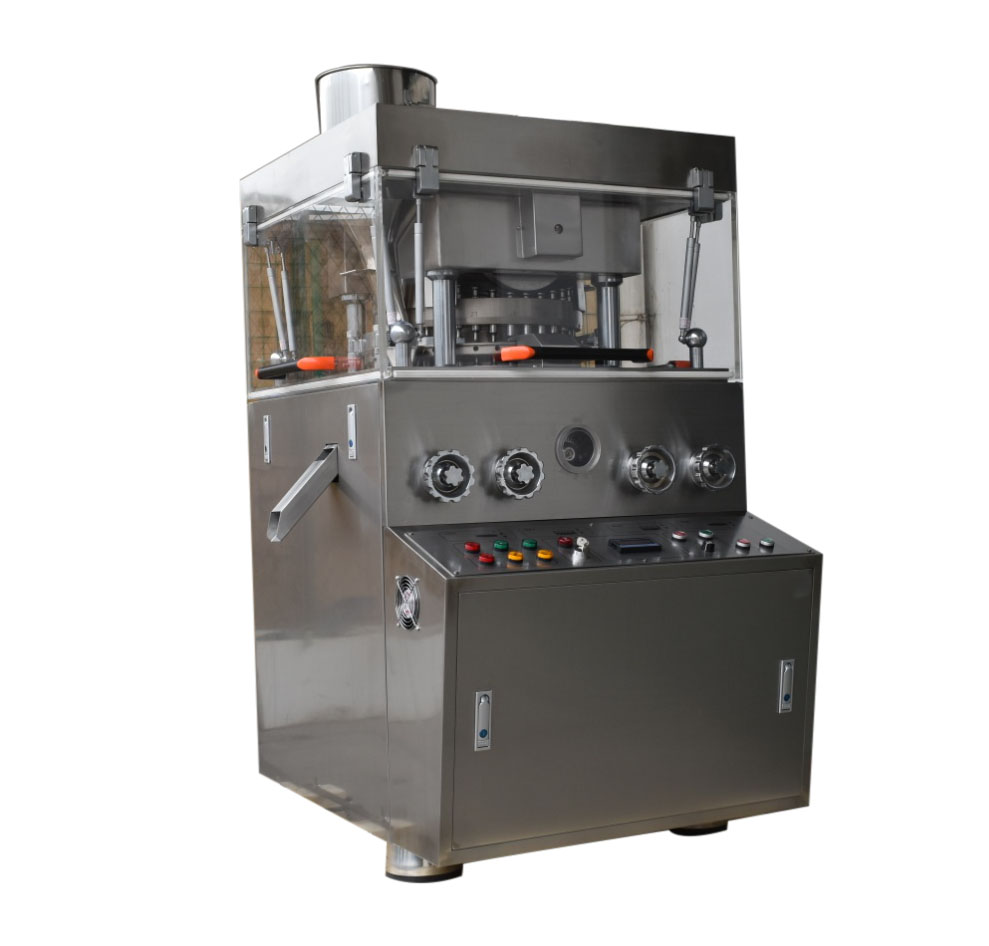

Machine Photo

Main Technical Data

Model	ZP11D
Quantity of Punch & Die (set)	11
Max. Pressure (kn)	80
Max. Dia. of Tablet (mm)	40
Max. Thickness of Tablet (mm)	6
Max. Depth of Filling (mm)	15
Rotate Speed (r/min)	10
Production Capacity (pcs/h)	6600
Voltage (v/hz)	380/50
Power (kw)	3
Outside Size (mm)	760×650×1400
Weight (kg)	850

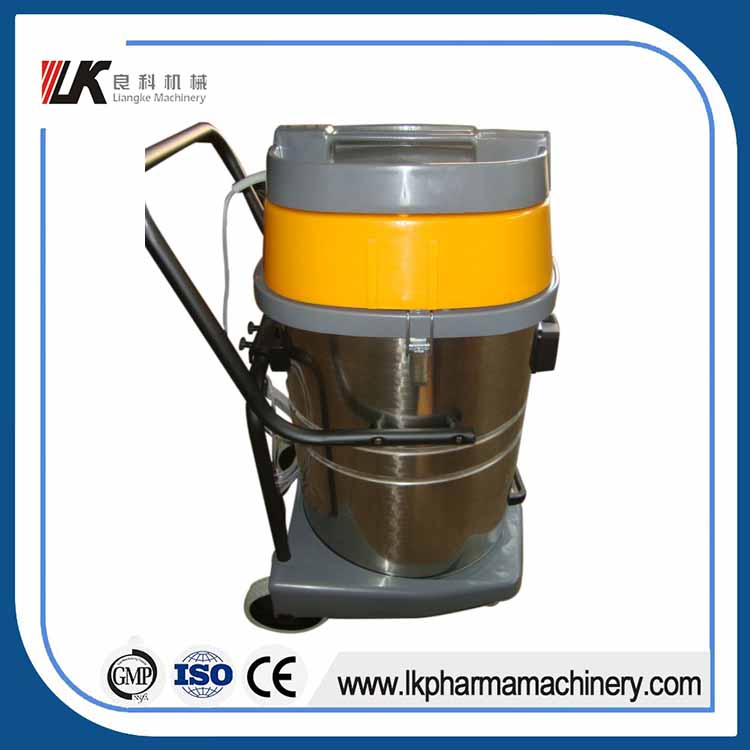

Dust collector BF-502

Performance

It’s widely applicable to clean dust on the equipment and in the environment of industrial production, such as medicine, foods, chemical industries etc.

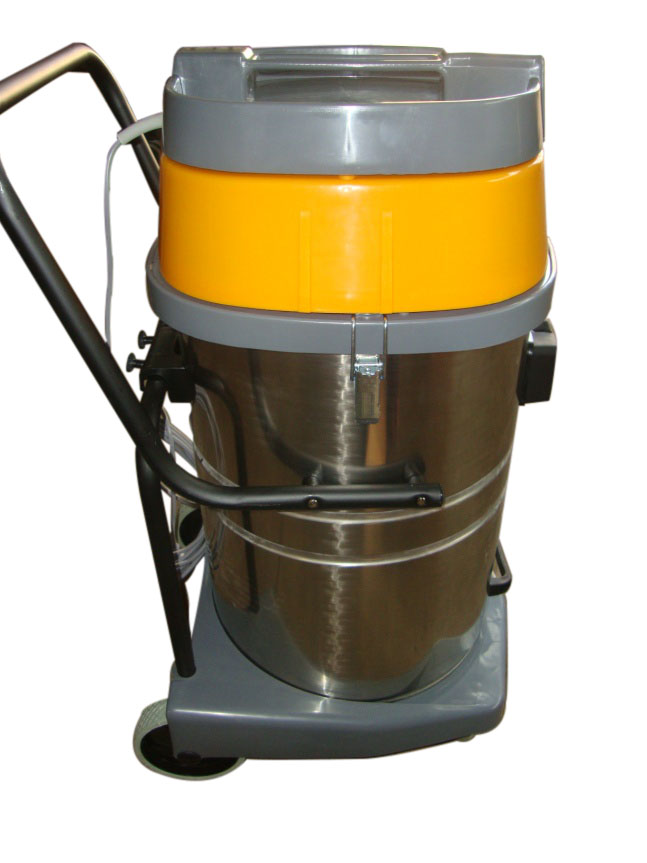

Machine Photo
