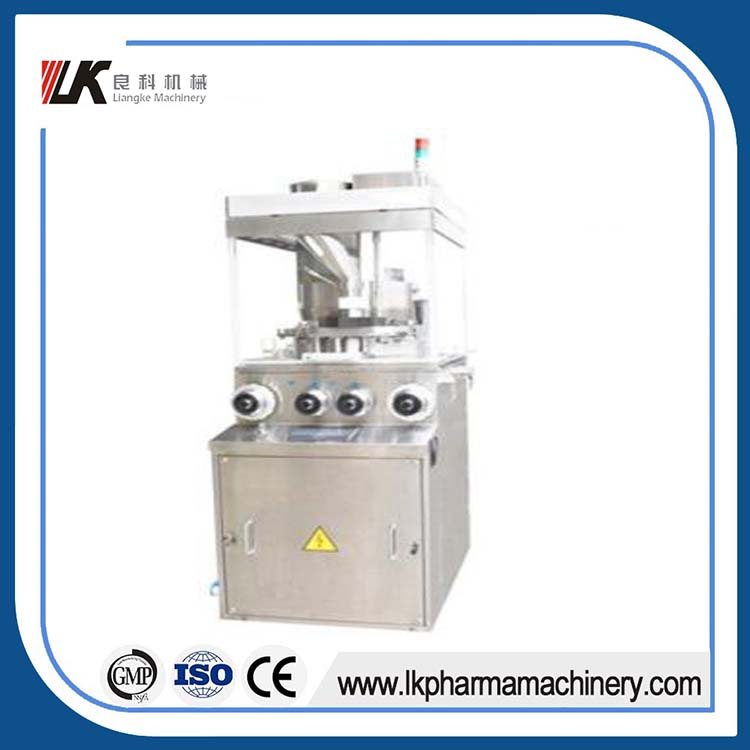

GZPK26/32/40/50 Fully Automatic High Speed Tablet Press

1.Operating condition of high speed table press: conforming to relevant requirements of GMP

2.Requirements on pressed materials

1)Requirements on particles

a.Particle size: 12-60 meshes, being of good compressibility and fluidity;

b.Compound starch tablets: being of uniform size, not damp and medium fine powders (over 60 meshes) take up less than 1/3;

c.Chinese medical particle: full extract, semi extract and raw meal particle, being not damp but fluid.

2)Dry powder

The powders are of compressibility and fluidity and can be pressed directly.

3)Tablet shapes

Normally round tablets, large tablets, irregularly shaped tablets, lettering tablets on one side or both sides, and cartoon tablets.

4)Power supply

380V, 50Hz, three-line and five-phase; lines N and PE don’t bother with each other.

3.Features

1)The machine is completely enclosed by a cover made of stainless steel. The turntable is covered by a hardened layer which can protect the turntable surface from wear and abrasion. It conforms to GMP.

2)The machine is equipped with plexiglass windows and doors and stainless steel frameworks which beautify and harden the doors.

3)Frequency and connection between motor and baseboard can avoid shake of motor during operation.

4)Automatic intermittently quantitative lubricating system in small flowing can automatically lubricate the upper and lower track and punch and reduce abrasion of track.

5)The hydraulic overload protection device is equipped. When the machine is overloaded, the device can protect punching nail and stop the machine automatically.

6)Adjustable air intake device is equipped to prevent dust in tablet chamber from flying.

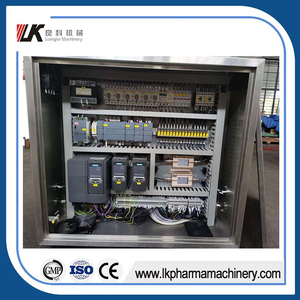

7)High-precision pressure sensor is equipped with an amplifier for gain and self-check. With reliable pressing pressure check, the sensor makes the tablet control system of tablet press to be operated conveniently and reject waste in batch or single piece.

All kinds of impellers of compulsive material feeding device can meet the requirements of different materials.

Automatic High Speed Tablet Press

Main Technical Data

Model	GZPK26	GZPK32	GZPK40	GZPK50
Puncher number	26	32	40	50
Punch type (IPT)	D	B	BB	TF16
Output (pcs/h)	34000-171000	42000-211000	52000-264000	28000-34200
Rotating speed (rpm)	22-110
Max. pressure	100KN
Max. pre-pressure	16KN
Max. filling depth	20mm	16mm	16mm	16mm
Tablet thickness	0.5-9mm
Max. tablet diameter	Ф25mm	Ф16mm	Ф13mm	Ф10mm
Max. irregular tablet diameter	<25mm	<19mm	<16mm	<11mm

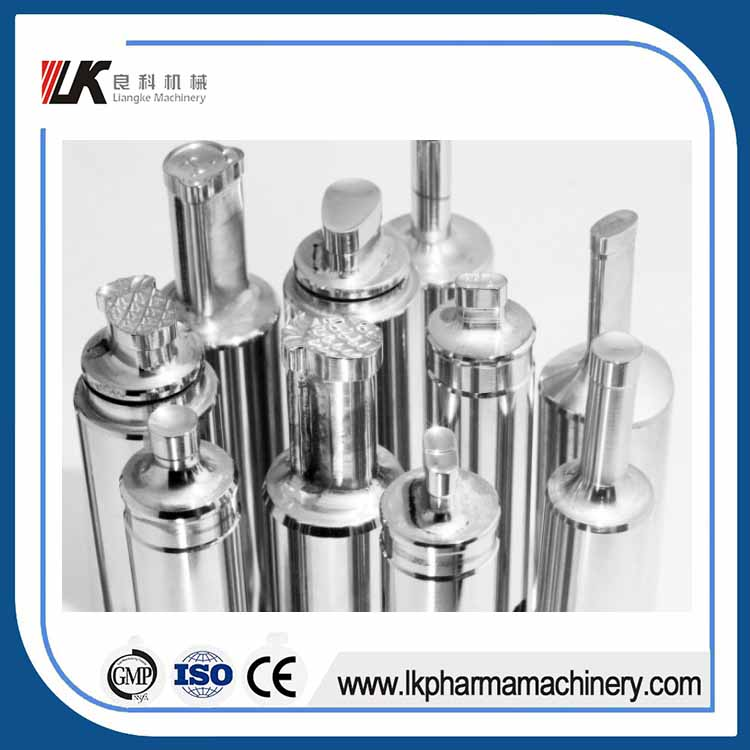

Punching mold diameter	Ф38.10mm	Ф30.16mm	Ф24.00mm	Ф19.00mm
Punching rod diameter	Ф25.35mm	Ф19.00mm	Ф19.00mm	Ф16.00mm
Punching rod length	133.60mm
Noise	≤70dB
Total power	7.5KW/380V, 50HZ, three-phase and five-line
Overall dimensions	82011001750mm
Net weight	1450kg
Remarks	The max output refers to the output when tablets are round, of min diameter and the rotating speed is the max. tablets diameter and shape will influence output.
