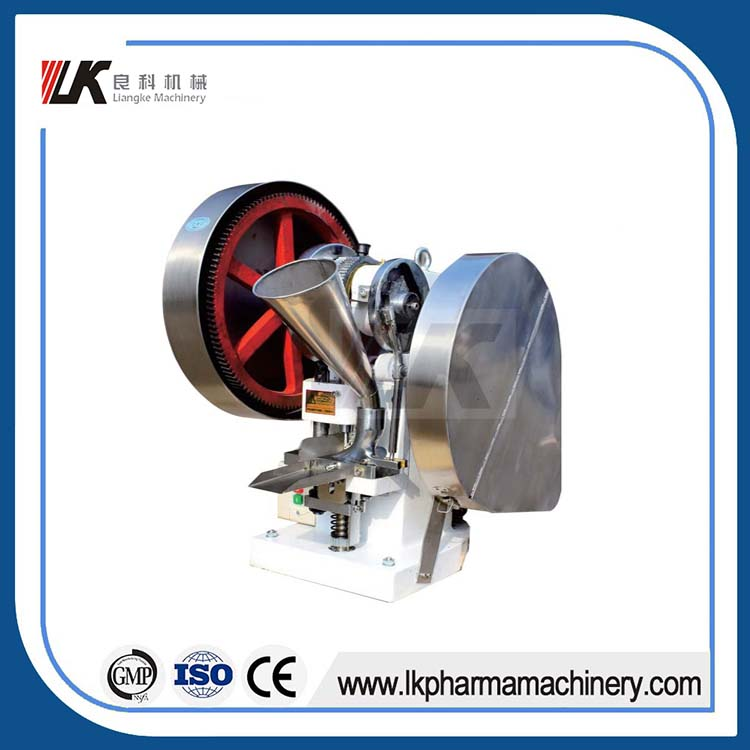

TDP-0 Single Punch Pill Press Tablet Press Machine Manufacturer
Product introduction
TDP series are single punch machine which is designed to table-top or portable version. Very small material quantities to be utilized and characterized quickly with a minimum of set-up, the tablet weight, thickness and hardness can be adjustable.
Main Technical Data
| Model | TDP-0 | TDP-1.5 | TDP-5 | TDP-6 |
| Max. Pressure (kn) | 15 | 15 | 50 | 60 |
| Max. Tablet Dia. (mm) | 12 | 12 | 16 | 25 |
| Max. Depth of Filling (mm) | 15 | 15 | 15 | 18 |
| Max. Tablet Thickness (mm) | 6 | 6 | 6 | 9 |
| Production Capacity (pcs/h) | 2000 | 6000 | 3600 | 3000 |
| Motor Power (kw) | - | 0.37 | 0.75 | 1.5 |
| Overall Size (mm) | 400*280*560 | 720*440*750 | 770*440*770 | 840*490*860 |
| Weight(kg) | 25 | 65 | 125 | 185 |
