ZP-420-19D Block Press for Chicken Essence

  • Product ID: Tablet Press Machine
  • Brand Name: Liangke
  • Certification: CE,GMP,ISO
  • Price: negotiable
  • Payment Terms: TT,L/C,West Union
  • Delivery Time: 30 working days upon receipt of payment
Quantity:

ZP-420-19D Block Press for Chicken Essence

Brief introduction

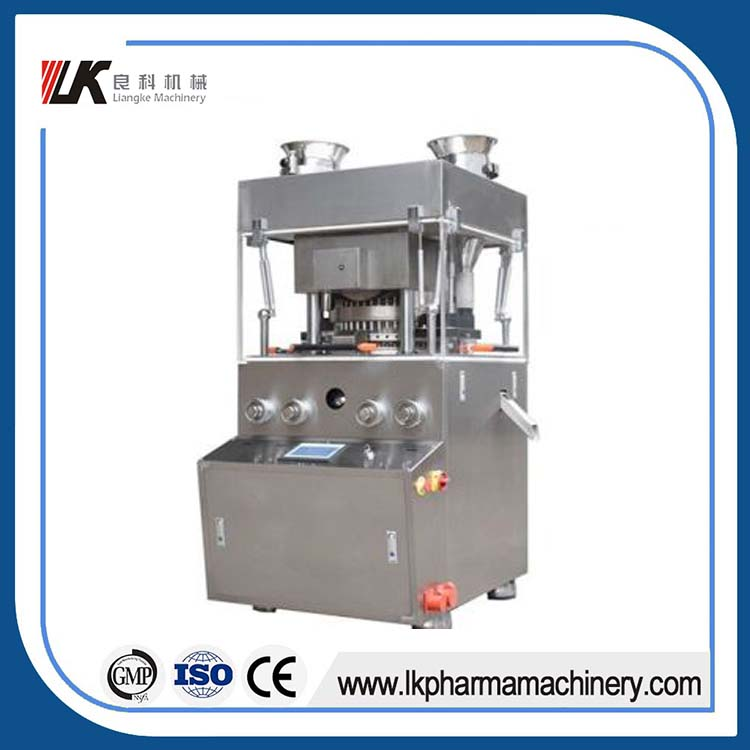

ZP-420-19D is a large rotary block press which has two pressing wheels and can press blocks continuously. It is also called large rotary tablet press, which can press particles or powders into round or irregular tablets. Therefore, it can be used in pharmaceutical, chemical, food, electronic and metallurgical factories to produce large tablets or blocks.


Main structure features
1)The machine is completely enclosed by a stainless steel cover and the interior table is also made of stainless steel. The table can keep smooth, avoid cross contamination and conform to GMP.
2)The equipped plexiglass window can help operators to observe tablet press. The side boards can be opened for cleaning and maintenance of the machine.
3)All controllers and operating parts are arranged reasonably.
4)Frequency control of speed can make operation and rotation convenient, stable, safe and precise.
5)Overload protection device can stop the machine when it is overloaded.
6)This machine is the leading one to apply semi-automatic lubricating device and its turntable is equipped with plexiglass dust-free device.
7)The driving system is separated in the oil can under the machine. For one thing, as a safe, separated and independent part, it will not be contaminated crossly. For another thing, the driving parts are immersed into oil for easy heat radiation and abrasion resistance.

Main Technical Data

Model

ZP-420-17/19D

Quantity of dies

17/19

Pressure

100KN

Tablet diameter

6-45mm

Filling limitation

1-34mm

Tablet thickness

1-15mm

Rotating speed of turntable

6-20rpm

Output

18000pcs/h

Power supply

380V/50Hz

Main motor power

7.5KW

Machine height

1870mm

Net weight

2200Kg

Samples

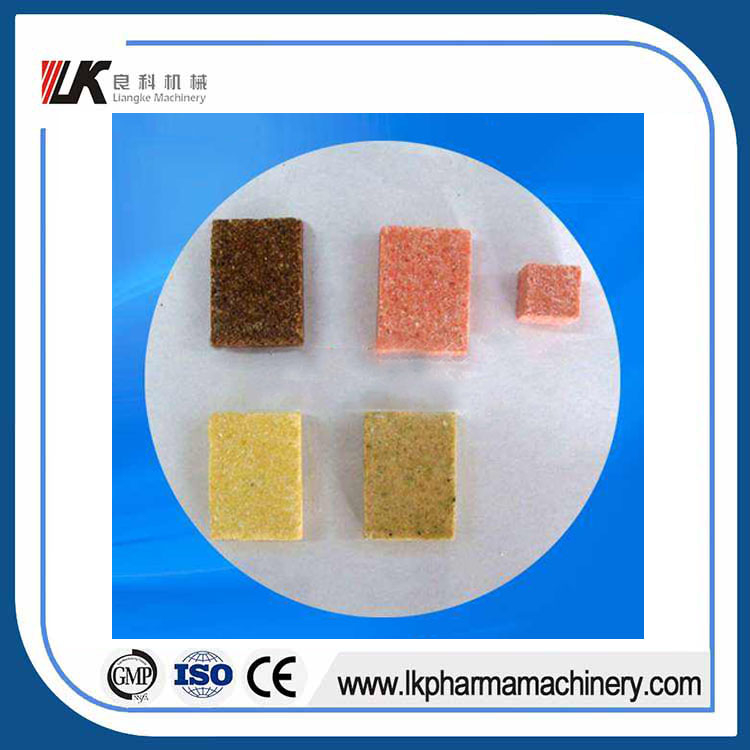

large rotary block press sample
