If you’ve ever worked in solid dosage form development, you know that powder blends rarely cooperate. Poor flow, segregation, and dust are the enemies of uniform tablets. That’s where wet granulation steps in. It’s not just about sticking powders together; it’s about engineering particle properties to ensure consistency, content uniformity, and mechanical strength.

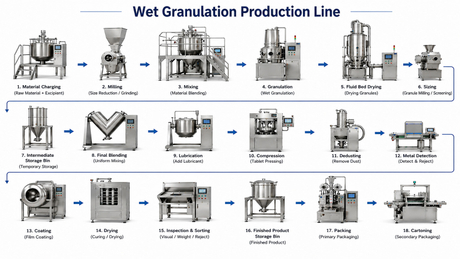

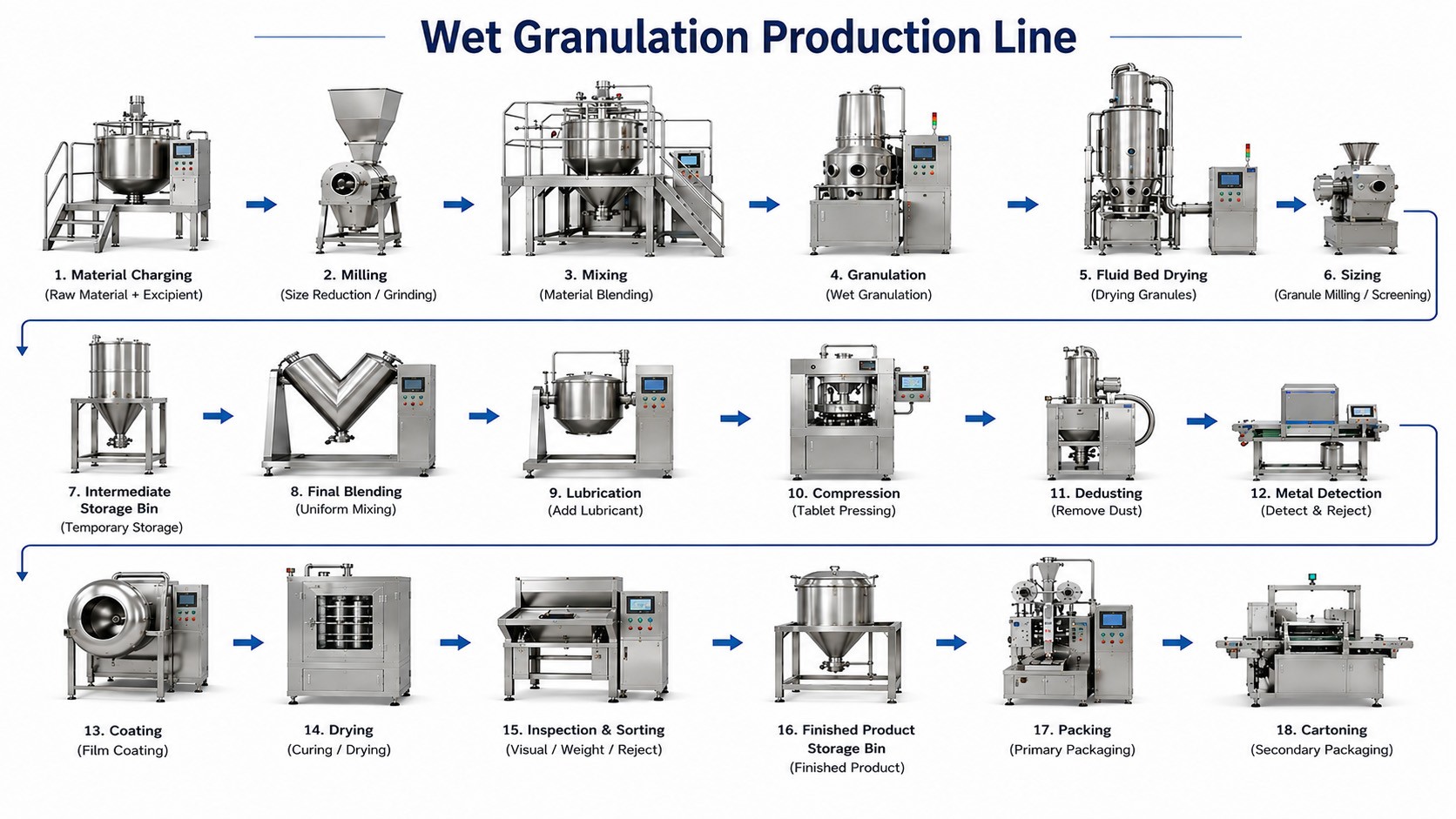

Here’s a practical walkthrough of the complete wet granulation workflow, from raw material handling to the final blend, with a focus on what truly matters for quality by design (QbD).
The journey doesn’t begin in the granulator; it begins at the sieve. Before any binder is added, all active pharmaceutical ingredients (APIs) and excipients must be milled and screened—typically through a 60- to 120-mesh screen. This step breaks down agglomerates and narrows the particle size distribution. If you're dealing with potent or poorly flowing APIs, this is also the moment to perform geometric dilution (manual premixing) to guarantee that trace amounts are evenly distributed before the main mixing phase.
Once the ingredients are weighed, they are charged into a high-shear wet granulator. The impeller runs for roughly 5 to 10 minutes to achieve a homogenous dry powder bed. This isn't a passive step—the blending time and impeller speed (e.g., 150±50 rpm) directly influence the surface area available for binder distribution later. Think of this as creating a "blank canvas" where every particle is accessible for the binder to wet.
This is where the magic happens. A binder solution (aqueous, hydroalcoholic, or polymer-based like HPMC) is introduced while the impeller and chopper run simultaneously. The key parameter here is binder volume—a mere 0.5% increase can tip the scale from under-granulation to over-granulation, turning your mass into a doughy mess.
Industry best practice involves monitoring the torque or power consumption of the impeller. When the curve reaches a plateau, the granulation endpoint is reached. At this stage, your material transitions from a loose powder into a damp, cohesive mass with a specific texture—often described as "snowball consistency" when squeezed by hand.
Immediately after wet massing, the damp agglomerates are passed through a wet sizing mill (e.g., an oscillating granulator with a 9×9 mm square mesh). This step serves a dual purpose: it breaks down oversized lumps that formed during high-shear mixing, and it creates a more uniform feed for the drying stage. It ensures that large, dense cores don't trap moisture inside, which would lead to uneven drying later.
The sized wet granules are transferred to a fluid bed dryer. Rather than simply "blowing hot air," modern QbD approaches define the drying process by inlet air temperature (typically 60–65°C) and product temperature profiles. You are not just chasing a target value; you are seeking a controlled drying curve to prevent case-hardening (a dry shell with a wet core).
Drying continues until the Loss on Drying (LOD) drops below a strict specification, often ≤1.0% to 2.0%, depending on the formulation. The goal is to achieve a final moisture content that balances flowability with tablet hardness—too dry, and you risk friability; too moist, and you invite sticking during compression.
After drying, granules frequently fuse into larger agglomerates or "caked" masses. Passing them through a dry mill or oscillating granulator (equipped with a 20- or 24-mesh screen) breaks these bridges. This step is less about size reduction and more about particle size normalization, ensuring that the final granule size distribution is tight enough to flow smoothly into the die cavity of a rotary press.
The sized granules are transferred to a bin blender, where external excipients are added. This typically includes the lubricant (magnesium stearate, added at the very end for 3–10 minutes) and the extra-granular disintegrant (like croscarmellose sodium).
A word of caution here: lubrication is a delicate balance. Over-lubricating for just 2 extra minutes can increase ejection forces and decrease tablet hardness due to the hydrophobic nature of magnesium stearate. This final blend must be homogeneous, but the blending time is validated precisely to avoid compromising tablet dissolution.
The final blend is now ready for tablet compression, where parameters like tablet weight, hardness (often 60–90 N), and thickness are monitored in real-time. If an extended-release or taste-masking profile is required, the tablets then proceed to a film-coating pan to apply a functional or aesthetic polymer coat.
Wet granulation is often viewed as a traditional, straightforward process. In practice, it is a dynamic interplay of powder rheology, binder thermodynamics, and mechanical energy. The shift in modern manufacturing is moving away from fixed "cookbook" parameters toward real-time process control, where each step is monitored and adjusted dynamically to maintain product quality.
