Three-Stage Filtration System for Tablet Coating Machines: Complete Guide to Primary, Medium & HEPA Filters
Introduction
The three-stage air filtration system is the core air purification component built into the air supply cabinet of pharmaceutical tablet coating equipment. It adopts a tiered filtration structure: primary filter → medium filter → HEPA high-efficiency filter, which removes large, medium and micro particles from incoming hot air step by step to guarantee clean air inside the coating drum and comply with pharmaceutical GMP cleanroom standards.
This article covers filter structure, operating principle, specifications, differential pressure monitoring, maintenance cycles, and a comparison between coating machine three-stage filtration and Class 100 laminar flow hoods for pharmaceutical production.
1. What Is the Three-Stage Filter of a Tablet Coating Machine?
The three-stage filtration assembly is a progressive air purification unit installed in the hot air cabinet of coating machines. Air flows sequentially through three filters to eliminate contaminants of different sizes, preventing dust, fibers and micro-particles from contaminating coated tablets and ensuring finished drug safety.
Filter Tier Breakdown & Core Parameters
Filter Grade | Filtration Role | Standard EU Grade | Installation Position |
Primary Pre-filter | First barrier to capture large debris: dust, pollen, textile fibers; protect downstream medium & HEPA filters to extend service life | G4 | Bottom of hot air cabinet, first air intake component |
Medium Filter | Secondary purification to trap medium-sized particles, reduce particle load on final HEPA filter | F8 / F9 | Mid-section of hot air duct, after primary filter |
HEPA High-Efficiency Filter | Final clean air barrier, intercept ≥99.97% of 0.3μm fine particles; core component for cleanroom air quality | H13 / H14 | Near heat exchanger & air outlet, last filter before coating drum |
After triple filtration, supply air delivered to the coating drum reaches ISO 8 cleanroom standard (Class 100,000 cleanliness level), fully meeting oral solid dosage coating production requirements.

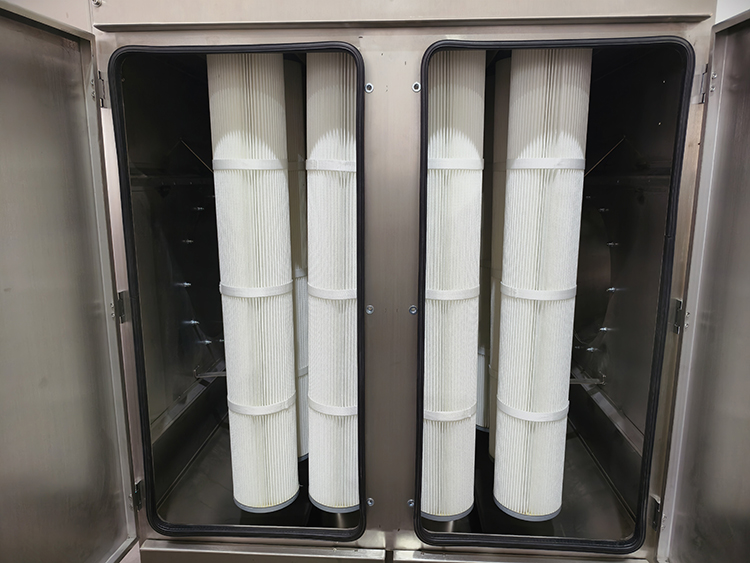

2. Appearance & Structural Features of Each Filter
1. G4 Primary Filter
Panel or pocket style, raw materials: non-woven fabric, metal wire mesh. Coarse texture, low procurement cost, easy to disassemble and clean.

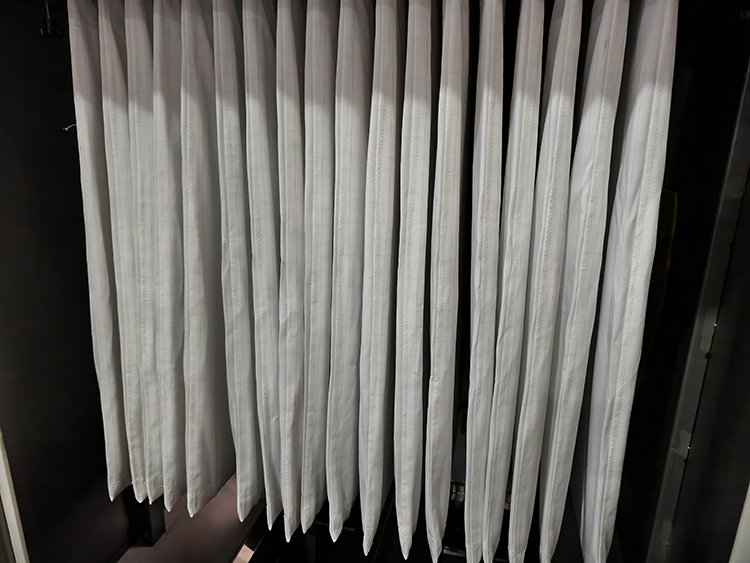

2. F8/F9 Medium Filter
Multi-pocket design to expand filtration area, filter media: synthetic fiber / glass fiber. Denser structure than primary filters.
3. H13/H14 HEPA Filter
Separated / mini-pleat structure with tightly folded ultra-fine glass fiber filter paper. Precise, compact frame, fragile filter media that cannot be washed.

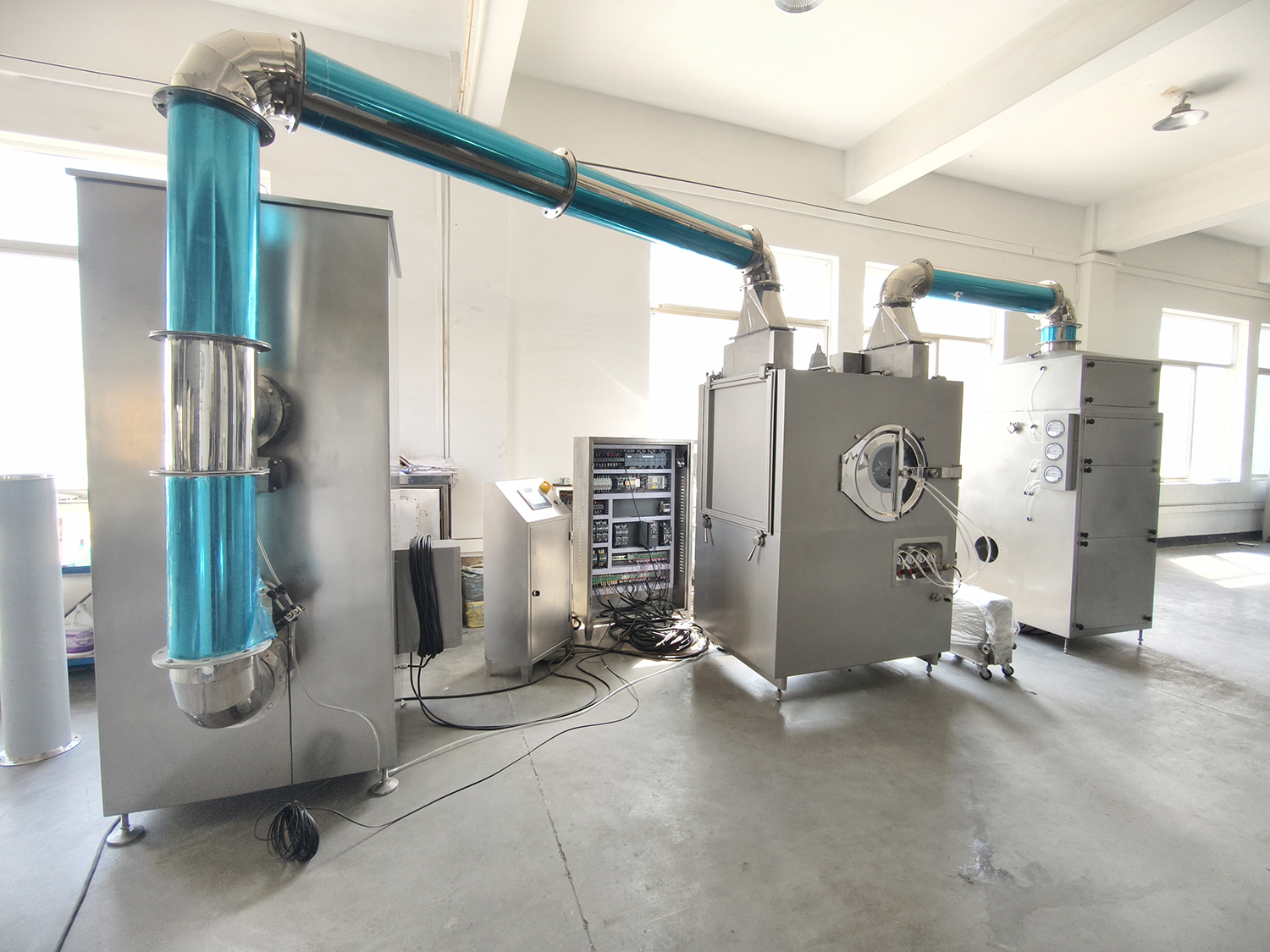

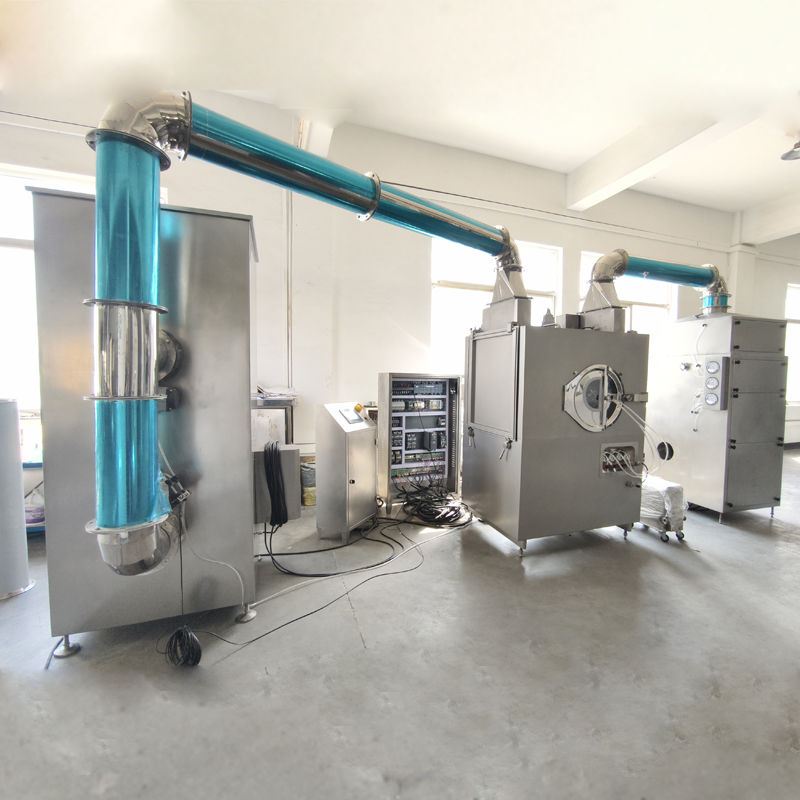

3. Working Principle of Coating Machine Air Purification System
All clean air for tablet coating circulates through the dedicated hot air cabinet with fixed air flow sequence:
Intake air → Primary filter → Heat exchange section → Medium filter → HEPA filter → Coating drum
The layout of the three-stage filter set directly determines the particle concentration of air contacting pharmaceutical tablets.
Differential Pressure Monitoring for Blockage Detection
Differential pressure gauges are installed before and after each filter to monitor clogging status in real time. When pressure resistance doubles the initial value, the filter is blocked and requires cleaning or full replacement.
4. Maintenance, Cleaning & Replacement Cycles
Critical rule: Primary & medium filters are reusable after cleaning; HEPA filters cannot be cleaned and must be fully replaced.
Filter Type | Maintenance Method | Standard Maintenance Cycle |
G4 Primary Filter | Power off, open cabinet access door, remove filter. Blow from air outlet to inlet with compressed air, or rinse with clean water, air-dry completely before reinstallation | Biweekly cleaning; priority based on differential pressure readings |
F8/F9 Medium Filter | Rinse with drinking water & neutral detergent, soak 15 mins in purified water, disinfect with 75% ethanol, squeeze dry and air-dry | Quarterly deep cleaning; monthly visual inspection |
H13/H14 HEPA Filter | Disposable only. Washing damages glass fiber filter paper, leading to particle leakage. After replacement, perform PAO leak test & particle counter validation by professional technicians | 3–6 months up to 5 years; mandatory replacement if differential pressure doubles or annual cleanroom validation fails |
5. Filtration Level Comparison: Coating Machine Triple Filtration vs Class 100 Laminar Flow Hood
Many pharmaceutical clients confuse the two clean air systems:
• Tablet coating machine three-stage filtration: Final air cleanliness ISO 8 (Class 100,000), suitable for overall air supply of coating production equipment.
• Class 100 laminar flow hood: ISO 5 ultra-clean local working zone, higher cleanliness standard, used for high-purity sterile sampling, weighing and aseptic dispensing instead of full machine air supply.
