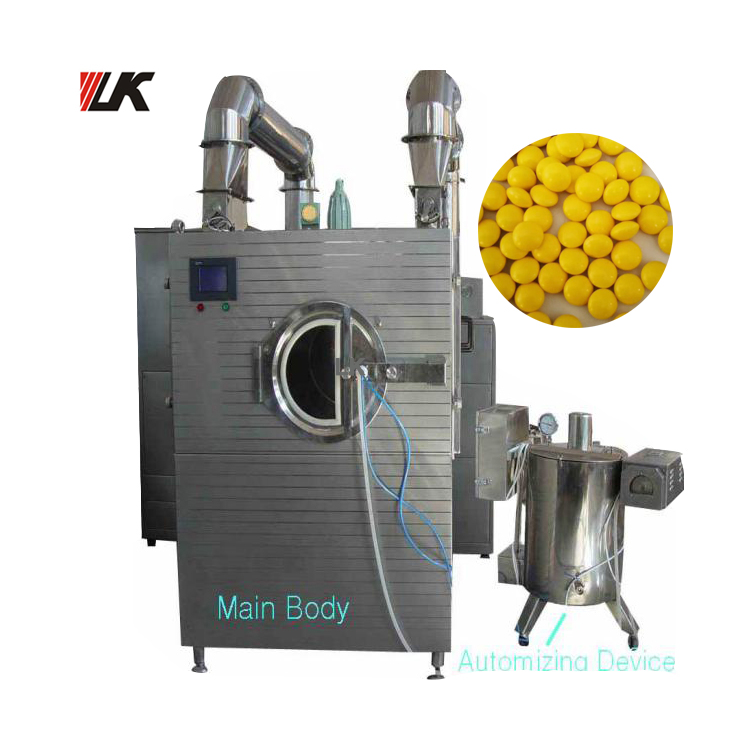

BG-40 Automatic pharmaceutical film coating machine for tablet
Application
The machine is advanced on the basis of BG film coating machine. Its pan can be changed to fit the film and sugar coating of small pharmacy, food, biology, and research products. A mainframe can produce in different batch.
Features
The pan changeable film coating machine acquires not only the function of film coating machine with hole, but also the most outstanding feature that the machine pan can be changeable to fulfill the requirements of variable production batch. According to practical needs, the pan and air path can be changed quickly to coat film in different batch.
Technical Parameters
|
Items |
Parameters |
|
|
Model |
BG-40 |
|
|
Production quantity |
40Kg every time |
|
|
Speed range of film coating roller |
1-21r/min |
|
|
Diameter of material inlet |
340mm |
|
|
Diameter of film coating roller |
750mm |
|
|
Diameter of roller mesh |
3mm |
|
|
Motor power of mainframe |
1.1KW (The mainframe is totally closed) |
|
|
Air source (supplied by the user) |
0.8 m3/min Pressure: ≥0.4MPa. |
|
|
Dimensions |
1200*840*1650mm(L×H×W) |
|
|
PLC |
It can make the frequency conversion continuously variable and set, adjust, display and memorize the technical parameters, operation speed, air inlet speed, spray force and flow during the operation of the complete machine. |
|
|
Hot air cabinet |
Motor power of hot air filter |
1.1KW (explosion-proof) |
|
Filter precision |
0.5μm |
|
|
Filter cleanliness |
100,000 class |
|
|
Air inlet speed |
1600m³/h (with a class-3 filter) |
|
|
Hot air temperature |
40~80℃ (adjustable) |
|
|
Dimensions |
810*700*1830mm(L×H×W) |
|
|
Weight |
300kg |
|
|
Dust removal cabinet |
Motor power dust removal fan |
2.2KW (explosion-proof) |
|
Air outlet speed |
3571 m3/h |
|
|
Surface material |
Matt stainless steel |
|
|
Dimensions |
700*700*1660 (L*W*H) |
|
|
Weight |
300Kg |
|
|
Spray gun |
Imported spray gun with uniform atomization, adjustable spray shape, position and angle |
|
|
Motor power of peristaltic pump |
0.25KW |
|
|
Peristaltic pump speed |
200-700 r/min |
|
|
Mainframe |
550Kg |
|
