Sieving and milling machine

SZ-500 grinding cone mill machine

Product ID: Sieving and milling machine
Brand Name: Liangke
Certification: CE,GMP,ISO
Price: negotiable
Payment Terms: TT,L/C,West Union
Delivery Time: 30 working days upon receipt of payment
INQUIRY

1. Overview
This machine can size material and make them obtain uniform size in high speed. It is of wide application to process material of variable specification after either wet granulation or dry granulation in foodstuff, pharmacy and chemical industry.

2. Features
1) The cone mill can produce material whose size is uniformly distributed so that product quality can keep consistent;
2) It can process material of different properties in variable industries;
3) It can process even fatty, heat-sensitive or damp material;
4) The average diameter of products after milling can be controlled to be within a range of 250-500μm;
5) The machine can operate in high efficiency but generate low dust and noise to not pollute the environment and to protect the operators;
6) It generates low heat, which is beneficial for heat sensitive material;

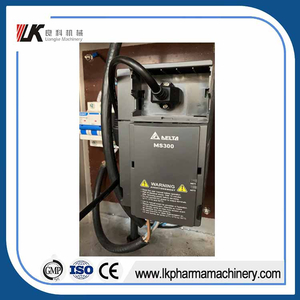

7) The machine speed can be variably adjusted for better production control;
8) Multiple driving configurations enable the machine to be more flexible;
9) For the sake of safety, all driving parts are enclosed, while they can be simply and conveniently cleaned due to special design;
10) This machine can be customized according to the clients’ requirements for its more precise performance during production.

3. Operation principle

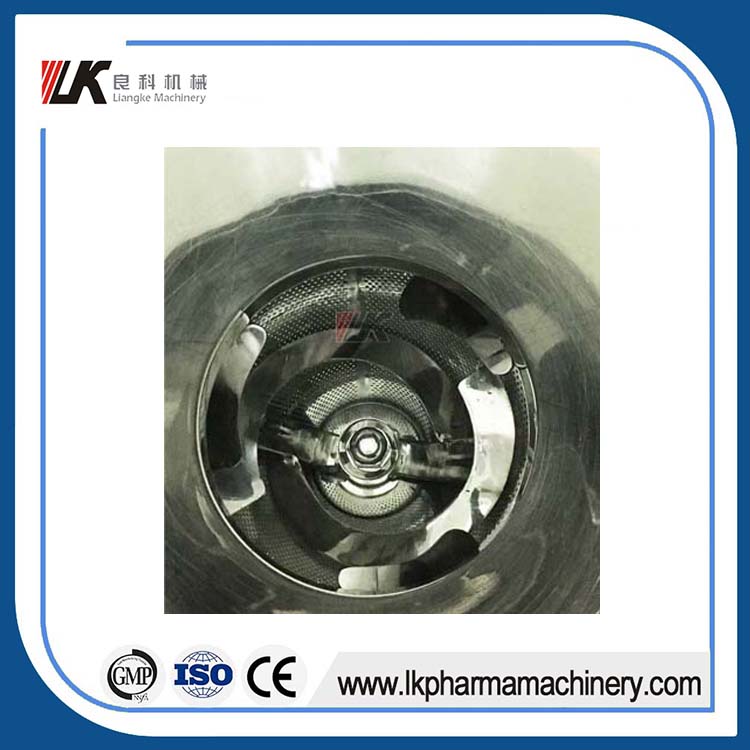

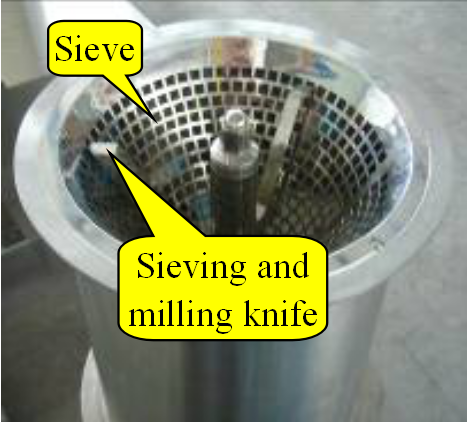

Materials to be processed enter the cone operation chamber through the material inlet port of the machine. Then rotating knife will make raw materials turn around and flow and will throw granules to the sieve under the centrifugal force. At the same time, the rotating knife rotate in a high speed to produce a shearing force together with the sieve. As a result, granules will be broken into small particles between the rotating knife and sieve and output through the sieve holes. The size of particles depends on the sieve mesh quantity, the gap between rotating knife and sieve and the rotating speed.

Two methods of material output of wet sieving and milling are as follows:
1) Horizontal: The material output port of sieving and milling machine is connected directly with the material input port of fluidized bed granulator or drier through a delivery pipe.
2) Vertical: Wet granules drop into the material storage container or the hopper of fluidized bed granulator or drier.
A. Horizontal material output
A horizontal material output device is installed under the drum of wet sieving and milling machine. A delivery pipe is connected with the material output port of the device. Under the force of negative pressure in the fluidization chamber of fluidized bed granulator/drier, wet granules enter the fluidized bed through the pipe to be dried. (Materials are delivered through suction pneumatic conveying.)
Its advantage is that materials are still in an enclosed system throughout the whole process from wet granulation to drying, which is the SCP mode in the true sense.
B. Vertical material output
Another container (which can be the hopper of fluidized bed granulator/drier) is put under the drum of wet sieving and milling machine. Wet granules drop into the container directly after wet sieving and milling and are then delivered into drying machine or box to be dried.
Its advantage is that it is flexible to coordinate the production of the whole granulation system, which will be helpful to improve the equipment utilization of the wet granulator.

1. Technical parameters

Item Mode		SZ-500
Motor power	KW	5.5
Output	Kg/h	100-500
Sieve hole diameter	Mm	2(2-8)8 (optional)
Rotating speed	Mm	Frequency control to the max of 1400
Rotating speed of the knife	r/min	200~1400
Overall dimensions	r/min	/
Sieve shape	Square: applicable in wet sieving and milling
