1. Application
LDTH series bin blender is widely applied in pharmaceutical production to mix dry powders with dry powders or granules of different substances. This machine can be equipped with multiple models of hopper and applied in large or medium enterprises. The single machine can mix medicine of different substances and batches according to technical requirements so that it can be multifunctional.
2. Overview
1) This machine is an integration of mechanism, electricity and hydraulicity. It is also a high-tech product, driven by frequency converter and controlled by PLC. Therefore, the machine can be controlled simply and its technical parameters adjusted conveniently.
2) Control system is sensitive, machine structure is compact and operation is stable and reliable.
3) A single machine can be equipped with hoppers of different models. The mixture needn’t to be discharged but the whole hopper will be dismantled and transferred to the next process. Such a design can improve machine efficiency, avoid cross contamination and conform to GMP requirements.
4) The mixing bucket is the burden bucket in the previous process, as well as the material feeding hopper is the next process.
5) Mixing uniformity can reach 99% and loading coefficient 0.8. The bucket is smooth and has no dead corners inside and outside.
6) After mixing of every batch, the empty hopper will be cleaned in special cleaning room so that the workshop can keep clean.
3. Operation principle

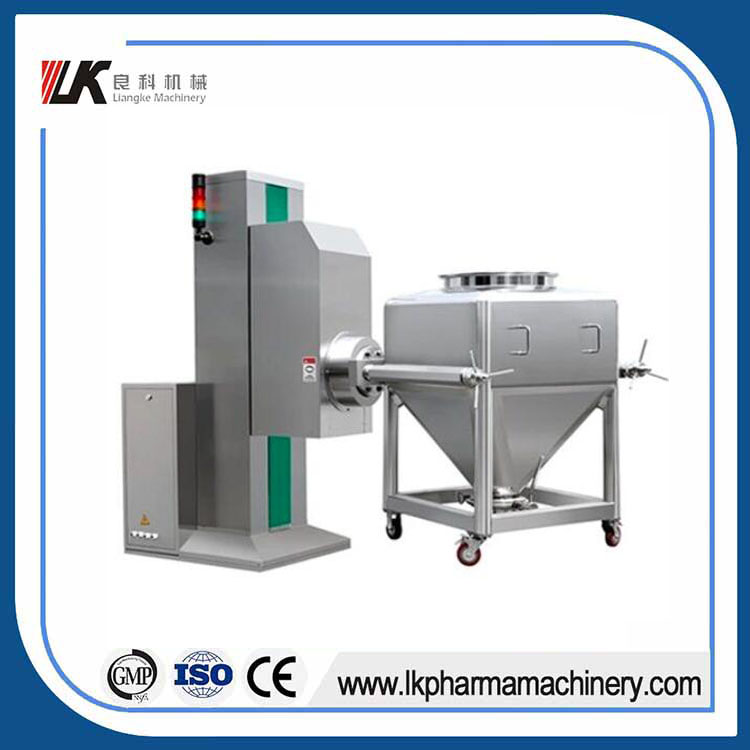

Push mixing hopper onto the oscillating holder and fasten the screw; start control system to lift hopper to the mixing height. Then the machine will mix automatically according to the set time and rotating speed. After mixing, the hopper stops levelly and lowers down automatically. The whole machine stops and prints technical data. Loosen screw of oscillating holder and push the hopper to the next process. Since an angle exists between hopper axis and oscillating holder axis, materials of different substances will carry out three-dimensional movement in the enclosed hopper and generate fierce overturn and height shear so that the best mixing effect can be achieved.
4. Features

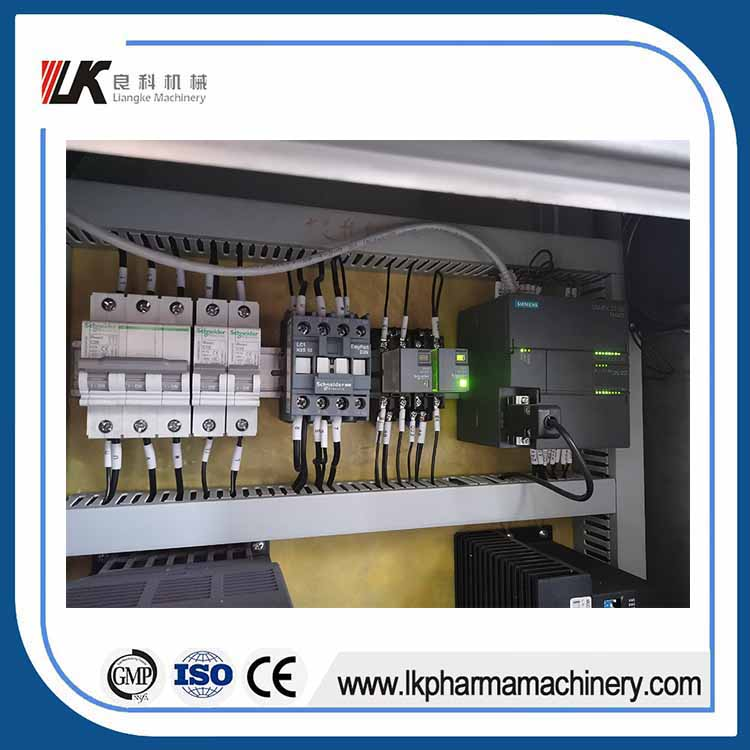

1) Automatic PLC control system is applied for simple control and convenient parameter adjustment.
2) Control system is sensitive, machine structure is compact and operation is stable and reliable.
3) The single machine can be equipped with hopper of different specifications to improve machine efficiency and avoid material cross contamination.
4) The mixing uniformity can reach over 99% and loading coefficient 0.8. The bucket is smooth and has no dead corner internally and externally.
5) The machine complies with GMP requirements completely.
5. Technical parameters of LDTH-1000 bin blender
Parameters Model |
LDTH-1000 |
Max. Hopper volume | 1000L |
Max. Working volume | 800L |
Max. Loading weight | 500Kg |
Rotating speed | 3-10rpm |
Total power of motor | 7KW |
Machine weight | 1800Kg |
Overall dimensions | (L*W*H)3000*2600*2800mm |
Parameters Model |
HLD-500 |
Hopper volume | 500L |
Hopper dimensions | 900mm*1400mm |
Butterfly valve for material discharging | φ159 |
Wall thickness of hopper | 2.5mm |
Material | SS304 |
